> New fpe zero sequence current sensor 266A 8.75`` T9A

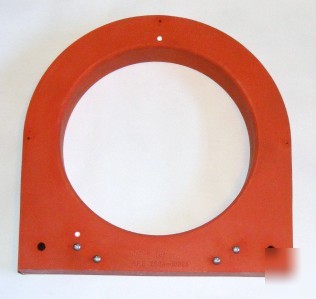

New fpe zero sequence current sensor 266A 8.75`` T9A
FPE Federal Pioneer Zero Sequence Current Sensor
Catalogue No. T9A, FPE 266A-10023
8.75`` (222 mm) diameter window
Type T, Series A SensorsSeries A Sensors consist of a magnetic core made from tape wound silicon steel, with a 1000 turn winding evenly wound around the core. These Sensors are intended to be used to detect faults exceeding 200mA. The entire assembly is encapsulated in a Glass -Polyester material which provides insulation of the core. The sensors are marked for polarity indication. These sensors range in window size from 2 in diameter to 9 in. diameter . Two Sensors (T3A-S and T6A-S ) may be split to allow installation without disassembly of the system wiring. Applications: MGFR-20-ZB
DSA, DSP MKII Pickup Range: 0.1A - 1200A5A - 1200A
