New champion 5HP pressure lubricated air compressor

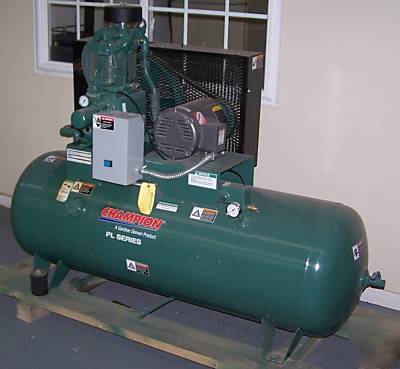

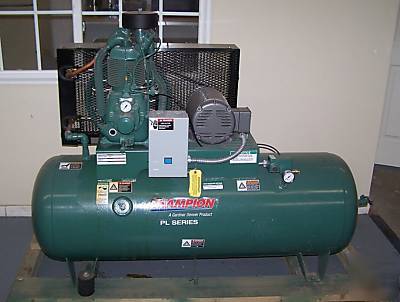

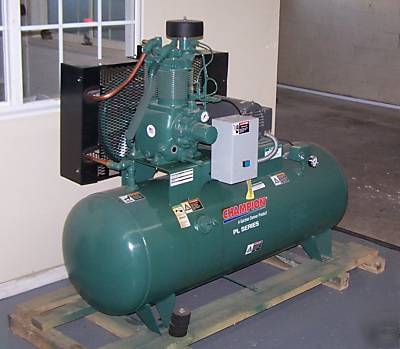

New Champion Pressure Lubricated 5Hp Compressor
* A full voltage starter mounted and wired
* HD air intake filter silencers
* An air cooled after cooler is mounted and plumbed. The after cooler will help to reduce the compressed air temperature out of the compressor and remove approx 50% of the sensible heat load and moisture.
* Low oil monitor is included
* Automatic tank drain is included
Champion compressors are Industrial quality and not a cheap High Speed import. They feature two piece connecting rods, field replaceable rod insert bearings, concentric type ring valves (not a cheap reed valve or finger valve), slow speed high output pump, NEMA rated motor, ASME coded air receiver, pressure lubricated (not splash). FIVE year pump warranty and FIVE year tank warranty.
Champion Advantage Series 5 HP Air Compressor"
Quantity One (1) Champion 5 HP Reciprocating Air Compressor, Pressure Lubricated Model #PL5-8 Advantage Series tank-mounted on 80 gallon air receiver
Bore & Stroke - 4 5/8" & 21/2" x 3"
Valve Type - Swedish Steel plate type (concentric ring)
Lubrication Type- Pressure Lubricated
Mounting - 80 gallon ASME coded receiver
Dimensions 66 " x 22 " x 48 5/8" (LxHxW)
* Over Sized Intercooler for More Efficient Power Curve
* Tapered Roller Bearing on Crankshaft
* Two Piece Connecting Rods w/Field Replaceable Insert Bearings
* Connecting Rod Inserts Bearings
* H.D. Swedish Steel Plate Valves VERY Reliable
* Centrifugal Unloader For easy Load Less Starting
* Three Compression Rings & One Oil Control Ring on Each Piston
* Heavy Duty. Welded Steel Base Plate
* OSHA Approved V-Belt Guard
* Discharged Air Plumbing With Service Valve
* Pressure Switch for Automatic Start Stop Operation
* Adjustable Motor Slide Base
* Includes all of above equipment plus:
* 0-300 PSI Tank Pressure Gauge
* Bottom Tank Drain (Manual)
* Bucket High Drain (Manual)
* ASME Coded safety Pop Off
* Tank legs with Bolt Down Holes
3. High Efficiency Main Motor
4. Heavy Duty Air Intake Filters & Silencers
5. Full Voltage NEMA #1 Magnetic Motor Starter Factory Mounted & Wired
6. Low Oil Monitor Switch Mounted & Wired To Starter
7. Five (5) Years Pump Warranty
8. Five (5) Years Tank Warranty
Warranty Five Years on Pump & Tank / One Year Overall
