Agilent E4407B esa-e spectrum analyzer 26GHZ *loaded*

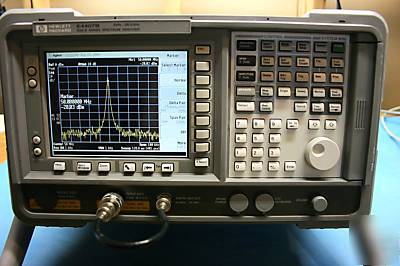

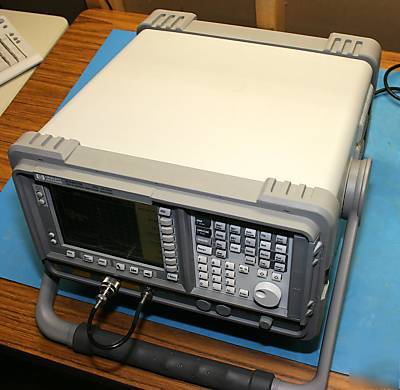

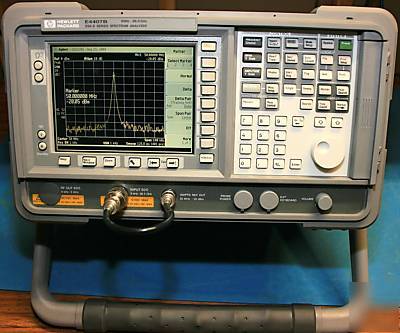

Agilent E4407B ESA-E Spectrum Analyzer 26Ghz
Calibrated with a 30 Day Warranty

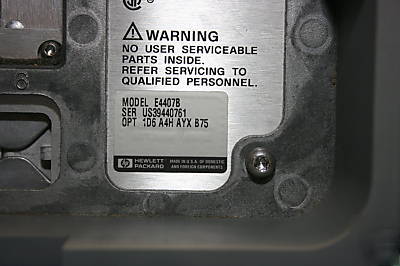

This unit is loaded with Options!!!!!
1D6, Time Gated Spectrum Analysis
AYX, Fast Time Domain sweep, IF, sweep, and Video output ports
B75, Performance Bundle that includes:
1D5, High Stability Frequency reference
1DR, Narrow Resolution bandwidths
9 kHz to 26.5 GHz Spectrum Analyzer
The HP / Agilent E4407B 9 kHz to 26.5 GHz Spectrum Analyzer uses the latest digital, RF and microwave designs to deliver superior performance. The ESA-E series portable spectrum analyzers have a remarkable one-millisecond RF sweep time and virtual real-time measurement updates to the display or through GPIB. Along with narrow digital resolution bandwidth filters (10 Hz to 300 Hz), and fast, time-domain sweeps youll spend less time testing and have your product to market faster.
This scalable performance in combination with Agilent measurement personalities, downloaded into the internal memory, transform the ESA-E analyzer into an application focused solution built around your unique needs.
The HP / Agilent E4407B 9 kHz to 26.5 GHz Spectrum Analyzer is a mid-performance spectrum analyzer solution. The series sets the performance standards in measurement speed, dynamic range, accuracy, and resolving power for similarly priced products. Its flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required.
The products' selection of one button measurement solutions combined with its easily navigable user interface and performance in speed allows engineers to spend less time testing and more time designing, building, and trouble shooting components and products.
* Noise Figure Measurement Personality
* Remotely view and control the ESA over the Internet
* 8590-series programming code compatibility
* 8566/68B programming code compatibility
* ESA-E series measurement solutions
* Modulation analysis measurement personality
* Bluetooth, GSM/GPRS and cdmaOne standards-compliant measurement personalities
* Fault location, phase noise and CATV service measurement personalities
* One-millisecond RF sweep time, 45 measurements per second
* RMS, peak, neg peak, quasi-peak detectors
* Optional 1 Hz digital-resolution bandwidth filter and preamplifier
* -167 dBm sensitivity, with internal preamp, +16 dBm TOI
* Maximum frequency coverage up to 325 GHz with external mixing
* Free IntuiLink PC software for screen and data transfer to Microsoft Office
* Add a built-in microwave preamplifier to 26.5 GHz, Option H26, to make low-level signal detection and surveillance easier
* BenchLink spectrum analyzer connectivity software
* SCPI programming and IVI COM driver support
5 minute warm-up to guaranteed measurement accuracyFor More details see Agilent s website search E4407B
