Bitx ver 3 ssb tcvr & frequency counter 50MHZ
BITX VERSION 3 KIT WITH FREQUENCY COUNTER 50MHZ
Bitx Version 3 Complete Kit With Frequency Counter 50Mhz FND 5 Digits

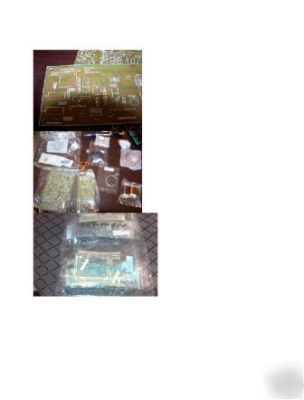

BITX VERSION 3 BASIC KIT as sold by us.
PCB Main Bitx TcvrPCB Liner Cum Power Supply
S.Meter KIT as a design by Luc Pistori F6BQU for his Forty transceiver
Circuit and designed by Wolfgang "Wolf" B scher, DL4YHF
THE PCB HAS BEEN REDISIGNED IN INDIA BY VU3WJM
* frequency range 1 Hz ... 50 MHz (prototype worked up to 60 MHz but this exceeds the PIC's timing specifications)
* four or five digits resolution (display for example x.xxx kHz, x.xxx MHz, or xx.xx MHz)
* automatic range switching with different gate times
* optional addition or subtraction of a frequency offset
* optional (configurable) power-saving mode which automatically turns the display off
if the frequency didn't change significantly within 15 seconds
The kit has the following Components:
1. FND Display Common Cathode 5 No
The Frequency Counter kit works well with the Bitx version 3 Kit
