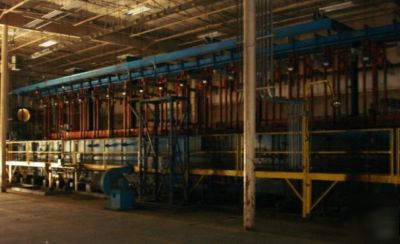

Napco electron 62 picker chrome plating line
Napco Electron 62 Picker Chrome Plating Line
Hydraulic Lift and Rotary Transfer by Chain
New December 1992, Installation complete 1994
10: CWR: (Clean Water Rince) T4
21 - 30: Semi Bright Nickel T13
Great Lakes Conductivity Meter & Monitoring
Allen Bradley PLC-5/15 Programmable Controller
West 3100 Programmable Tank Controllers - Temp
Machine is 120 Feet Long Height from bottom to top is 16' 8" plus 8" beam on the bottom = 17'2". Width of machine tank to tank = 12' Wide, Add Platform on both sides = 18'8". Then add room to walk around that.
Tanks are 40 front to back x 43 wide x 64 Deep - one station size. So if the layout above has tanks 21-30 = one large tank the size of 10 individual tanks.
There will be a rigging fee at the time of sale.
