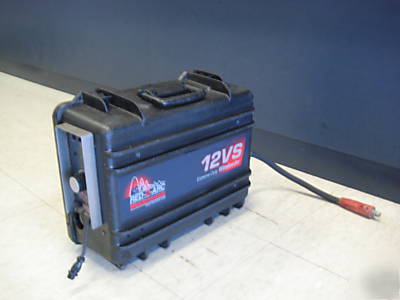

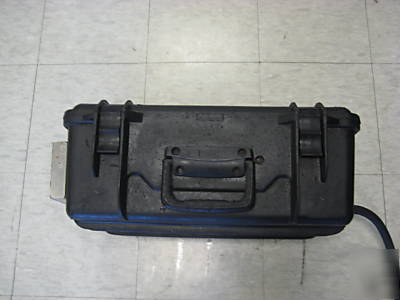

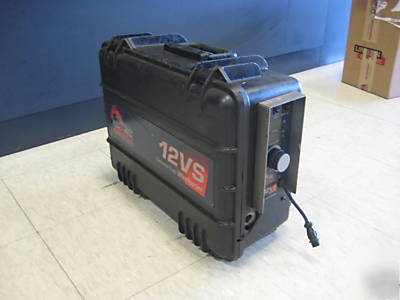

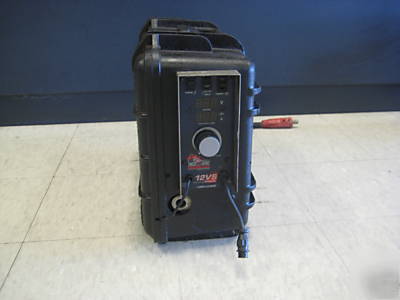

Miller suitcase extreme 12VS wire feeder mig


For MIG and Flux-Cored Welding
Operates on Arc Voltage and Open Circuit
Voltage-Sensing Control Circuit with CC/CV Switch
New polypropylene case with built-in side rails and the ability to open the door to change wire with feeder in vertical position. Digital meters with SunVision technology are standard for voltage and wire speed, and can also display amperage if desired. Meters can be seen clearly even in direct sunlight. Potted and trayed main printed circuit board for the harshest environments adds exceptional reliability. Board has full-trigger isolation so a shorted gun trigger will not affect feeder operation. Improved contactor and overall duty cycle for high-amperage applications (425 A at 60%). Trigger hold, wire jog, and gas purge are all located on the front panel. Wider voltage range for small and large wires with no contactor chatter or arc outages. New double-filtered gas valve.
Semiautomatic Wirefeeders - Specifications
Wire Feed Speed: 50 - 780 IPM (1.3 - 19.8 m/min)
Welding Circuit Rating: 425 A at 60% Duty Cycle
Input Power: Operates on OCV and arc voltage 14 to 48 VDC
Wire Diameters: .023 - 5/64" solid, .030 - 5/64" flux-cored
Maximum Spool Size: 45 lb (20.4 kg), 12" (305 mm)
Dimensions: H: 21" (533 mm) W: 9" (229 mm)
Available Options and Accessories
Various semiautomatic welding guns, gas hose, regulator/flometer
Shielding gas, welding wire and other consumables sold separately
Most Red-D-Arc power sources and engine-driven welders
This is a used machine that has been tested and is excellent working order.
A Profax 400 Amp Gun is included.
