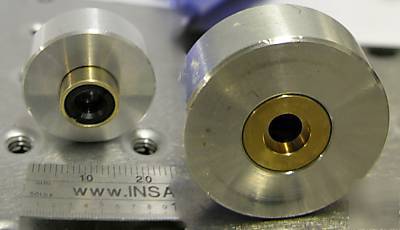

Laser module housing w/ ~ 1" heat sink - plastic lens
This is a NEW Laser Module Housing with Heat Sink
* You asked for it, so Here It Is... Sale !, LOWER COST
* 10.5 mm diameter X 14.5 mm long module, inserted into 24.5mm diameter X 1 cm thick aluminum heat sink- module rear flush with heat sink.
* Coming SOON: A blank Heat sink of this size, and other sizes maybe for common hosts- make suggestions/ drawing accepted.
* Ready for you to install into your diode module Host. Works Great with many 3XAAA 9 LED Flashlight Hosts.
* High Quality plastic aspheric collimating lens- adjustable focus.
* Accepts 5.6 mm dia. laser diodes. 405nm, 650nm Burning, 808nm, etc.
* Use for your project, or see our OTHER listing for flashlight host, this item , high current laser driver kit and PHR 803T laser diode included. No diode in this kit!
* Typically produces a 1.1 mrad divergent beam. Lens focal length = 8mm, 0.28 NA
* Optimized for red wavelengths, but can be used for IR and is good for violet blue diodes too. Appears to be the same lens as Axyiz plastic lens
* Adjustable Focus if needed, just turn to front ring with a screwdriver, or small tool.
* Glass Lens version (for Red & IR systems) also available (at higher cost), just ask/ see our other listings. Also a special low loss glass lens for 405nm available- bare or mounted in a module (tool and hand adjustment available- or we can also mount them in a similar heat sink.
* Please see the module housing data sheet for more details:http:// /html/H-05-P.pdf
Available in Volume at a Discount. We supply Laser manufacturer's Worldwide. 2009 is our 12th Year. Put our experience and free engineering advice to work for your firm. Give us a call !
Made by an ISO 9001 manufacturer, in Taiwan. We were in the company's facility and their clean rooms in late June 2007.We are not a trading company, we only sell LASERS and related components.
Easy to use, just press fit for diode into the rear. Diode we be flush with rear of housing.
