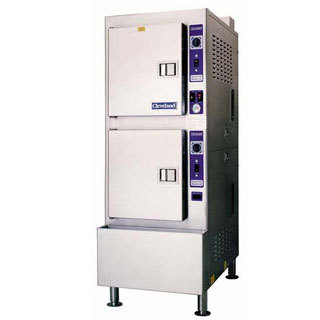

Cleveland 24CGP10 pressureless steamer, gas, two compar
Pressureless Steamer, Gas, Two Compartments, 5 Pans per Compartment, Steamcraft Power 10 Series
Steamcraft Power 10, Pressureless Steamer, Gas, 2 compartments, (5) 12 x 20 x 2 1/2 pans/compartment capacity, electro-mechanical 60 min. timers, s/s construction, split water connection, 6" s/s legs, steam generator, boiler, 240,000BTU
* SteamCraft Pressureless Steamers
* Two compartment floor model design gas steam generators, 240M BTU, 24" wide modular design
* Pressureless cooking permits doors to be opened during operation
* Capacity for up to ten 12" x 20" x 2 1/2" deep Cafeteria pans, five each compartment
* Exclusive PowerPak Gas Steam Generator: High Efficiency Forced Air (Power Burner) Gas Fired Boiler has 240,000 Btu Input, produces 180 Ibs of steam per hour. 10-12 PSI operating generator pressure
* Steam generator is equipped with a High-Limit Pressure Safety Switch, 15 psi Safety Valve and a Secondary Low Water Shut Off Safety standard
* Fully insulated rear mounted steam generator. Gas Pressure Regulator and Control Valve included standard.
* Boiler Descaling Port Connection: Inlet and Outlet descaling port connections for use with the Descaling Pump
* Instant Steam Stand By Mode: Holds generator at a steaming temperature. Allows unit to start steaming instantly
* Durable 14 Gauge, Stainless Steel Construction: For compartment door, cavity and cabinet frame
* Two 60 Mechanical Timers with ON/OFF Main Power Switch with a Heat On, Low Water Indicator Lights and High Temperature Safety Light and Shut-off (Reset Light)
* Main Power On/Off Switch: Controls the electric power and automatically fills the generator with water. A separate Steam Switch ignites the burners via a fully automatic Electronic (pilotless) Spark Ignition
* Exclusive Steam Cooking Distribution System:
* Exclusive Brass Steam Jets produce a high velocity
* convection steam without fans. Coved Corner design in
* cooking compartment distributes heat evenly, easy to clean.
* Creased top & bottom enhance drainage. Cold Water
* Condenser for each compartment maintains a dry steam. Fully
* insulated cooking compartment for thermal efficiency.
* Removable Stainless Steel Slide Racks. Reversible Door
* Automatic Boiler Drain: Contains a "Water Jet" Spray Rinse Drain Cleaning Cycle to keep drain clear.
* Exclusive Automatic Float for Water Level Control: Separate from the generator for easy access, contains a high velocity rinse cycle to eliminate mineral buildup.
* Exclusive "Cool to the Touch" Two-Piece Compartment Door Design: Free floating inner door with reversible gasket provides an air tight seal. Stainless Steel Slam/Latch Door mechanism for reliability
* Condensate Drip Trough: Provided under lower compartment door to collect condensate
* NSF Certified 6" Stainless Steel Legs with adjustable flanged feet for a one inch level adjustment
