> 20P samtec micro high speed interfaces q pair terminal

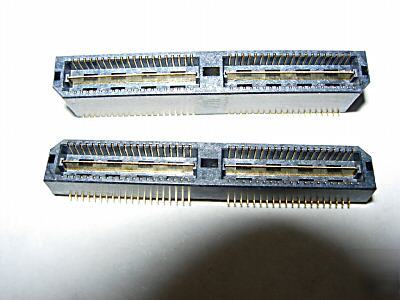

20P samtec micro high speed interfaces q pair terminal
* Capable of XAUI, PCI Express and SATA Data Rates (5mm Stack Height), Capable of PCI Express Data Rates (16mm Stack Height) - "See Application Notes & White Papers Tab"
1). Samtec QTE-060-01-L-D-DP-A 5mm Stack Height (186pcs)
QTE-DP Series 5mm Stack Height High Speed Testing Standards
Differential Pair Signaling (100 ohm environment)
Board Stacking Height - mated with QSE-DP Series:
(based on above testing standards)
2). Samtec QTE-060-01-L-D-DP-A 8mm Stack Height (273pcs)
QTE-DP Series 8mm Stack Height High Speed Testing Standards
(50 ohm system, SGS configuration with plane grounded unless otherwise stated)
http:// /ftppub/pdf/QTE_DP.PDF
http:// /technical_specifications/overview.aspx?series=QTE-DP
