Anritsu MW9070A mm fiber otdr MW0973J w/ fls-235B vfl
* Anritsu MW9070A Mainframe V5.2
* Anritsu MW0973J MultiMode Module 850nm
* EXFO FLS-235B VFL w/ Manual & Case

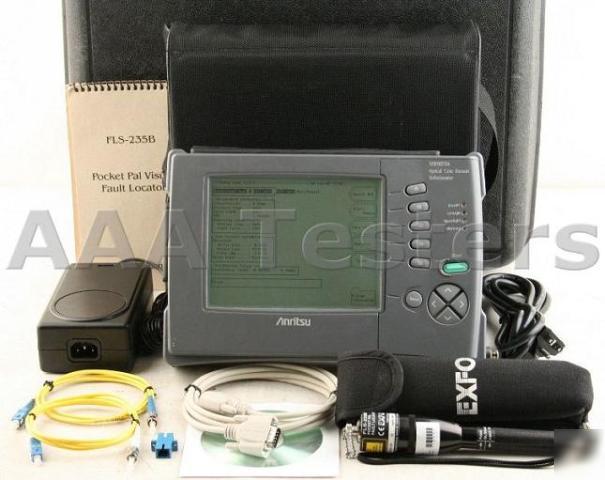

Anritsu MW9070A mini-OTDR MainFrame With MW0973J MultiMode 850nm Module
Includes EXFO FLS-235B Pocket Pal (VFL) Visual Fault Locater
The MW9070A is a high-performance mini-OTDR for installation and maintenance of subscriber fiber optic lines and other fiber optic cables. It automatically detects the positions of faults in the cable and displays an event table listing faults and a trace waveform. The high-performance mini-OTDR has a large 7" screen while staying within the size of a B5 file and weighing in at only 3.2 kg.
The MW9070A is designed with a dynamic range and short dead zone and is indispensable for detecting faults in optical trunk lines, subscriber lines, optical CATV cables, optical LANs, and other types of fiber optic cables. In addition, it is also invaluable in measuring transmission line losses, connection losses, return loss, and other parameters. Six optical units are available(OPTIONAL)depending on the wavelength and type of optical fiber, making the MW9070A an economic choice for a wide range of applications.
* Compact (smaller than footprint) & lightweight (3.2 kg).
* Simple operation with automated fault measurement.
* Simultaneous waveform trace and event table display on large LCD.
FC, ST, DIN, SC, DIAMOND (HFS-13/A)
20, 50, 100, 500 (500 ns is added to only 1300 nm wavelength)
Dead Zone Back-scattered light
Distance measurements: 2 m (10 4 x distance) marker resolution *Excluding uncertainly caused by fiber IOR Loss measurements (linearity): 0.05 dB/dB or 0.1 dB (whichever greater)
Return loss measurements: 4 dB
180 s max. (auto-measurement mode)
Laser: 21CFR Class 1, IEC Class 1
