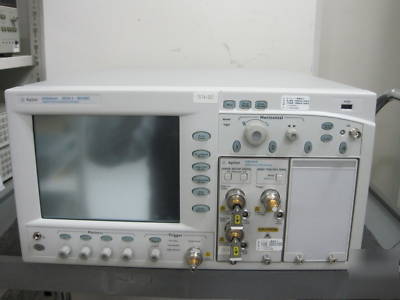

Agilent 54754A differential tdr/tdt module
Agilent 54754A Differential & single-ended TDR/TDT module
The Agilent 54754A provides two 18-GHz channels that have built-in TDR step generators. The two channels may work in tandem to provide differential or common mode TDR stimulus/response, or may be used independently. Either channel works as a normal oscilloscope vertical system when the TDR/TDT step generators are not operating.
Characteristic rms noise: 0.25 mV (12.4 GHz BW), 0.5 mV (18 GHz BW)
Maximum input signal: 2 Vdc
Two built-in step generators configurable for 1-port, 2-port common mode, or 2-port differential TDR or TDT measurements
Built-in TDR/TDT calibration, user-selectable edge speed, S-Parameters (requires mainframe FW rev. A.06.01 or later. S-parameters requires option 202)
