Tripp-lite the isolator IS250HG transformer+faraday
Manufacturer Part NumberIS250HG
Manufacturer Website Address
Product NameIsolator IS250HG Isolation Transformer
Product TypeIsolation Transformer
Input Receptacles1 x NEMA L5-15P
Output Receptacles2 x NEMA 5-15R
Input Voltage Range120 V AC Nominal
Output Voltage120 V AC Nominal
Dimensions4.50" Height x 4.75" Width x 7.75" Depth
Additional Information Transformer Type: Medical grade, low impedance transformer-based line isolation transformer
Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode
Suppression Joule Rating: 680 (510 input/170 output)
Leakage Current: As low as 100 microamps
Noise Suppression Rating: 35 to 65 DB
Total Harmonic Distortion: Less than 1%
Over Current Protection: 2A circuit breaker
Let-through Voltage (Ring Wave):
Let-through Voltage (Combination Wave):
Instruction manual with warranty information
Certifications & Standards cUL
COMES WITH THE TRANSFORMER AND THE BOX ONLY

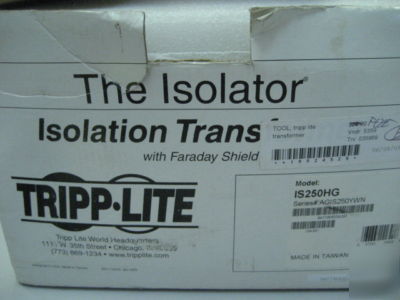

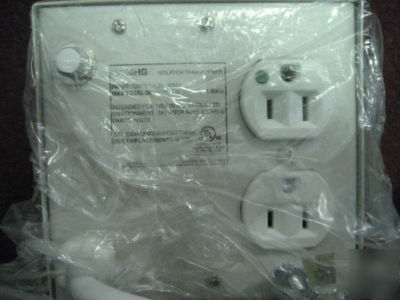

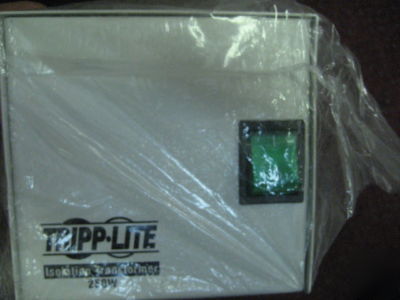

In NEW condition, Will work great. Item box shows normal wear with some scuffs and scratches. Comes as seen in pictures, so don't miss out on this great deal.
