Tektronix tds 754D digital oscilloscope 500MHZ, 4 ch

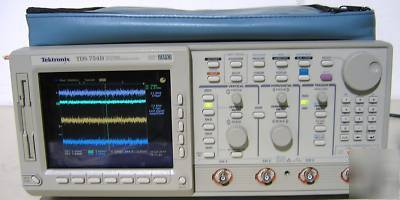

TEKTRONIX TDS 754D DIGITAL PHOSPHOR OSCILLOSCOPE 500MHz, 2 GS/s, 4 CH.
* Description: The Tektronix TDS 754D is a Digital Phosphor Oscilloscopes that has 4 Channels and a bandwidth of 500 MHz. This unit includes options 05, 13, 2M, 2F, 2C, 1F and HD.
* Advanced Triggering, Including Triggering for AMI, CMI and NRZ Communication Signals
* Automatic Measurements with Measurement Statistics Including Extinction Ratio and Average Optical Power
* Waveform Histograms on DPO and Normal Waveform Acquisitions
* Custom Mask Generation On-board
* Autoset Signals to Standard Masks
* SONET/SDH and Fiber Channel Optical Reference Receivers
* Internal Standard Communication Signal Masks Provided for Compliance Testing from Over 50 Communication Standards:
* SONET/SDH (OC1/STM0, OC3/STM1, OC12/STM4)
* ITU-T (64 Kb/s, E1, E2, E3, E4, E5, STM1E)
* ANSI T1.102 (DS1, DS1A, DS1C, DS2, DS3, DS4NA, STS-1, STS-3)
* Fiber Channel (FC133, FC266, FC531, FC1063), electrical and optical
* SMPTE (143, 270, 360 and 1485 Mb/s)
* Ethernet (10, 100 and 1000 Mb/s)

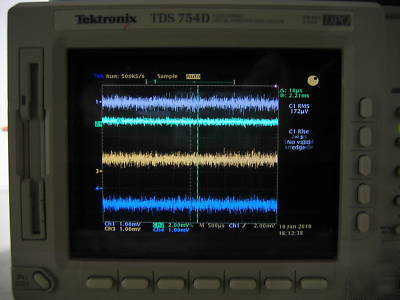

* Working Condition: Unit passes power on self test, REPORTS (2) ERRORS: Ch.1 RMAS 3.1 mV & Ch.1 no valid edge. Aside from listed errors, presumed good, but untested.
