xenon flash u-type lamp power 120 joules per pulse
NIB Xenon Flash U-type lamp Power 120 Joules per pulse!
This lamp comes as spare part for studio strobe light, photography flash unit or small DIY Laser unit with Q-switch.

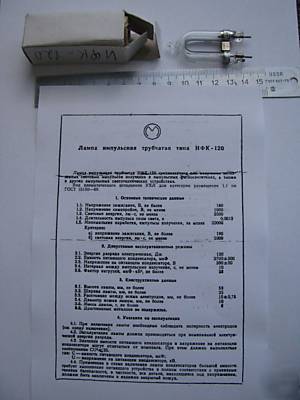

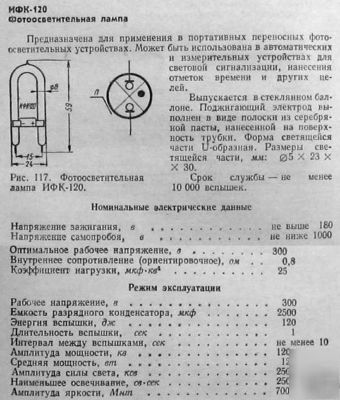

It comes new in original box and I have attached a copy of passport.
1. Type of glowing part - U-type;
2. Glowing (plasma) part sizes: d5 x 23 x 30 mm U-size;
4. Rated FLASH energy - up to 120Joules;
6. Self discharge voltage: 1000VDC;
7. Flashing frequency: 1/10 Hz for 120J power capacitor;
8. Flashing frequency: 3Hz for 5J power capacitor (50uF 450VDC);
9. Recommended 120J capacitor: High power Photo grade 2500uF 450VDC;
10. Rated work time: minimum 10000 pulses;
11. Pulse duration: 1msec (0.001 sec);
12. Amplitude light power Mnt = 700 units;
13. Load coefficient 25uF/1000V.
Please check my other items for sell I have many parts for DIY or laboratory laser project!
I could also provide with BIG Nd:glass rods up to 30cm and 15mm diameter, as well as laser mirrors!
IFK-120 Xenon Flash U-type lamp with copy of original passport one pcs.
I will take special attention for this question!
I am using a Huge amount of bubbled PE film to cover package it in several turns; and good hard carton box will be used as a outer packaging - so transportation will be easy and careful ;)

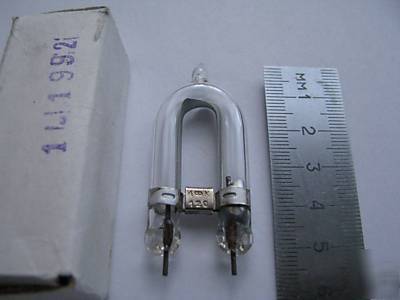

Attention: you will get what you see on the pictures, nothing more
NOTE: digital caliper, liner or tape meter are not included ;)
