> E5503B phase noise measurement solution, 50KHZ to 18GHZ

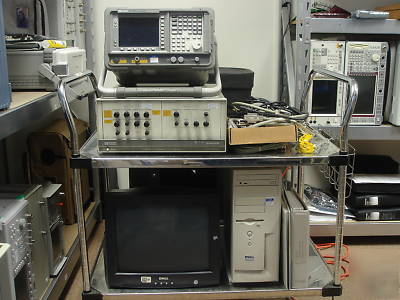

E5503B phase noise measurement solution, 50KHZ to 18GHZ
The E5503B phase noise measurement solution simplifies ATE test times for one-port VOC's, DROs, crystal oscillators and synthesizers and maximizes capability for R& D benchtop applications. The Agilent E5503B phase noise measurement solution has been designed to simplify phase noise measurements of one-port VCOs, DROs, crystal oscillators, and synthesizers and to maximize the capability for R&D benchtop applications. In addition, with a standard offset range capability from 0.01 Hz to 100 MHz, the Agilent E5503B provides the capability, flexibility and versatility to meet changing and demanding needs placed upon the R&D engineer. By building upon 30 years of Agilent Technologies low phase noise, RF design and measurement experience, the Agilent E5503B solution continues to provide excellent measurement integrity, repeatability and accuracy.
* Ability to test a wide range of devices
* Measure offsets to 100 MHz
* Industry leading sensitivity
* Stepped upgrade path from Agilent 3048 Systems
SPEC AN, 9KHZ-1.5GHZ ESA-L (HP)
TEST SET, PHASE NOISE, OPT 001 (HP)
COMPUTER, DELL DIMENSION E550XX (A)
ML,INSTALL/CONFIG GUIDE;(DOWNLOAD):AGI
ML, INSTALL/VERIFICATION 70001A (HP)
ML, INSTALLATION GUIDE; E5503B (A)
ML, USERS GUIDE 70420A OPT 001/201 (HP)
CDROM, DOCUMENTATION SET; E4404B (HP)
CDROM, E5500 SYS SFTWARE; E5503B (A)
ADAPTER, APC-3.5(f) to APC-3.5(f); (A)
TERMINATION,RF (SMC); 8662A/63A (HP)
POWER CORD (7'6" BLK)AMER; (NEWARK)
JUMPER, SMA-SMA SEMI RIGID; (HP)
CDROM, I/O LIBRARIES; E5503B (A)
CARD; HP-IB INTERFACE(INSTALLED) (HP)
CABLE, 70247(IF) TO 70420A; E5504A (A)
CABLE, SEMIRIGID 70420/CON; E5504A (A)
ML, GPIB INTERFACE INSTALL GUIDE; (HP)
ML, ESA MEASUREMENT GUIDE; E5504A (A)
ML,PROG. GUIDE; ESA SPEC.AN'S (HP)
