Dc leadscrew motor assembly with encoder

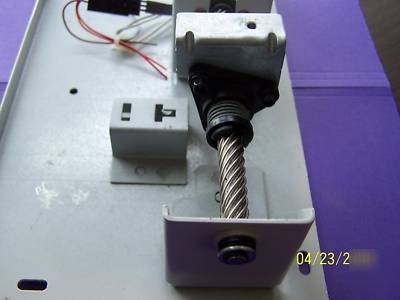

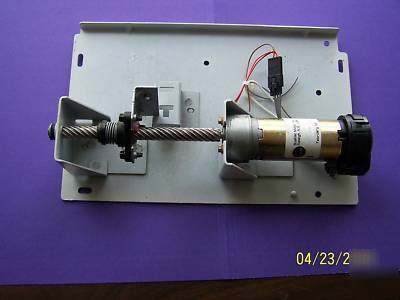

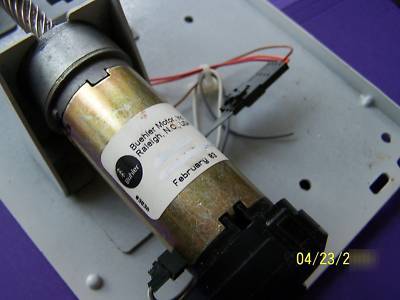

Motor assembly that features a DC Buehler Gear head motor. This assembly drives a 110 mm (approx. 4 5/16 ) long lead screw, 85 mm ( 3 ) maximum travel x 4.3 mm (1 11/16 ) Rev.
Specifications: Input Voltage: 6 12 Volts DC
120 mA @ 6v with no load / 150 mA 12V with no load
Encoder: 50 pulses per revolution, 5v DC
Steel Base Plate Dimensions: 9 3/8 long x 6 wide x 3 high
Lead Screw Diameter: 9.5 mm (0.375 )
Lead (Pitch): 4.5 mm (0.017 ) per revolution
Screw Diameter: Approximately 9.5mm (.375")
