New eurotech vulcan-ice-R6 M64-F32 enclosure

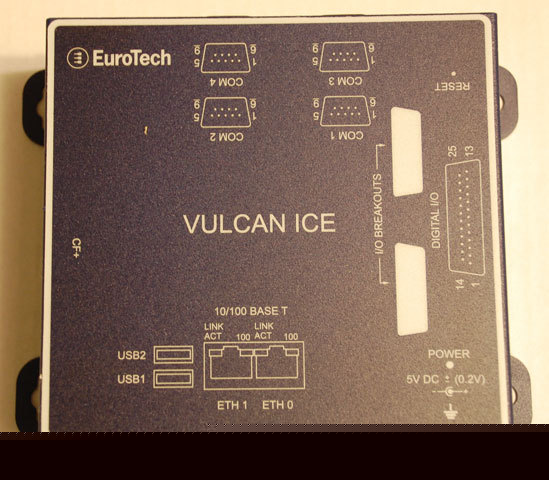

EuroTech Vulcan-Ice-R6 M64-F32 Enclosure NEW
This product is EuroTech Vulcan-Ice-R6 M64-F32 Enclosure.
This item is NEW and in an open box.
Item Number 7060-51561-002-101
From the manufactures website:
The VULCAN ICE (industrial compact enclosure) is optimized for the IXP425 XScale based VULCAN single board computer. The enclosure can be configured to suit a complete range of embedded applications with options.
* Fitted with Eurotech Ltd's VULCAN processor board
* Power input for +5V DC input
* 3 x RS232 serial ports (D-type 9-way plugs)
* 1 x RS422/485 serial port (D-type 9-way plug)
* 1 x digital I/O port (D-type 25-way socket)
* RJ45 Ethernet ports (10/100BaseT)
* CompactFlash (CF+) socket break out
* Expansion space for a PC/104 card with 2 additional I/O breakouts
* Power Requirements: 4.5W maximum (VULCAN board only)
* The VULCAN enclosure requires a 5V supply. This is connected via a 2.1mm jack. The typical current consumption is 700mA (VULCAN board only)
* Operating temperature range -20 C to 60 C
* Humidity 10% to 90% RH (non-condensing)
* Dimensions: Enclosure body 120.75mm x 142.6mm x 53mm
* Enclosure including mounting feet 154mm x 142.6mm x 53mm
Please make sure this item number meets your needs before purchasing.
