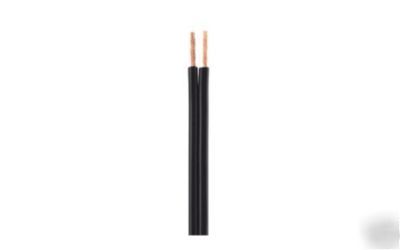

New cci 55271 8/2 landscape lighting cable 100 ft
PART NUMBER: 55271 COLEMAN CABLE
DESCRIPTION: 8 AWG 2/C STRANDED UNDERGROUND LOW ENERGY CIRCUIT LIGHTING CABLE
CONSTRUCTION: This cable consists of two bare copper conductors with integral insulation and jacket in an SPT style construction.
APPROVALS: UL Misc. Wire - Low Energy Circuit Cable
APPLICATION: Low Voltage Underground Lighting Applications
* Stranded low energy circuit cable
* Sequential footage marking
* Low Voltage Underground Lighting
Insulation/Jacket Material PVC
Insulation/Jacket Thickness 0.062" Nom.
Overall Dimensions 0.270" x 0.530" Nom.
Temperature Rating -20C to 60C
DC Resistance per Conductor @ 20OC 0.65 Ohms/1M' Nom.
Insulation/Jacket Colors Black
ALL SPECS ARE FROM COLEMAN CABLE
