Jacoby-tarbox 4IN bulls-eye sight flow indicator w/ qd

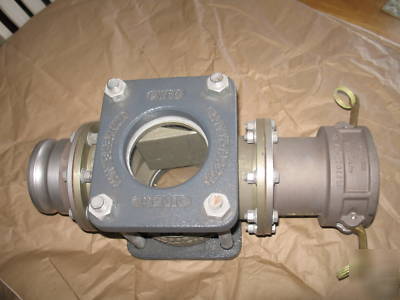

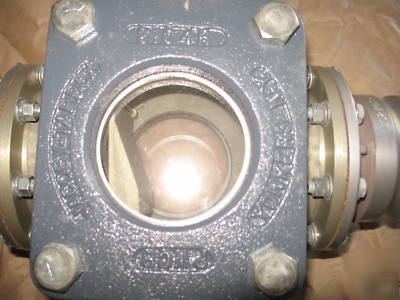

Jacoby-Tarbox 4 in. Bulls-Eye Sight Flow Indicator w/ Quick Disconnect
These Sight Flow Indicators were over $1800.00 each.
Wetted Materials: ALUMINUM T.BORO TFE
Max Operating Pressure: 100 PSIG. 6.9 BAR
Max Operating Temperature: 300 F 149 C
Identification Number: BA24B 60140 B
Tag Number NSN: 6680-00-106-8680
Sight indicator is fitted with Ever-Tite Male 4LAT and Female 4LBT Quick Disconnects.
Jacoby-Tarbox's full ASME rated line of flanged bullseye sight flows have been engineered per the design criteria of the ASME B31.1 & 31.3 Power & Chemical Piping Codes, incorporating all ASTM listed materials for the pressure retaining components: bodies, fasteners, and retainers. This standardselling group of features include full ASME code compliance with regards to yield criteria, materials, and pressure/temperature ratings.
STANDARD FEATURES:Connections per ASME B16.5, B16.24, and B16.1 Standard fasteners per ASTM A354 and ASTM A194 complying with most piping specifications. Tempered borosilicate glass Units are machined and assembled in an ISO-9001 fUlly automated facility, Welled components meet NACE MR-01-75 requirements Stainless steel engraved identification faceplate
FULL VIEW VISIBILITY: Pipeline view is maximized, in most cases with a diameter that is equal to the nominal pipe size, allowing 100% unobstructed process observation of gases, solids, solutions, and slurries.
CAPACITY: Non-Rotor models offer minimized pressure drops with their nonrestricting, smooth, full-bore construction.
APPLICATONS: Jacoby-Tarbox 150 psig threaded units are ideal for piping and mechanical engineers that wish to economically view their process within their pipelines. Drain, lube, hydraulic, condensate, feed, and return lines are just a few areas of JacobyTarbox's successful applications, Skid O.E.M.'s specify this series when easy maintenance, installation, and compactness is desired.
