Fluke fom fiber optic meter w/fos 850-1300 source

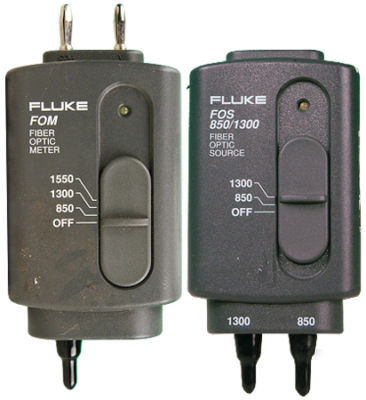

Fluke FOM/FOS 850-1300 Fiber Optic Meter w/Source
The Fiber Optic Power Meter (FOM) measures optical power on fiber optic cables. An FOM indicates any power loss on tested cables using any digital multimeter (DMM) or graphical multimeter (GMM) that has a 10 MW input impedance, standard diameter banana jacks, and mVdc capability. The Fiber Optic Light Source (FOS) is used as a light source with the FOM or other fiber optic meters.
FOM Power Meter Specifications
Input Connector Type: Fixed ST
Application Range: 800 to 1600 nm
Calibrated wavelengths: 850, 1300, and 1550 nm
Operating Range: +3 to -50 dBm
Acceptable fiber types: (sizes): 9/125 to 100/140 mm
FOS 850/1300 Source Specifications
Wavelength: 850/1300 30 nm, -40/+50 nm
Output power: -20 dBm, nominal into 62.5/125 micron multimode fiber
Output connector type: Fixed ST
Pulse duration: Continuous wave
Maximum output: 200 mW (radiated into free space)
Battery Cover is missing on the FOS
Ask our Sales Personnel for details.
