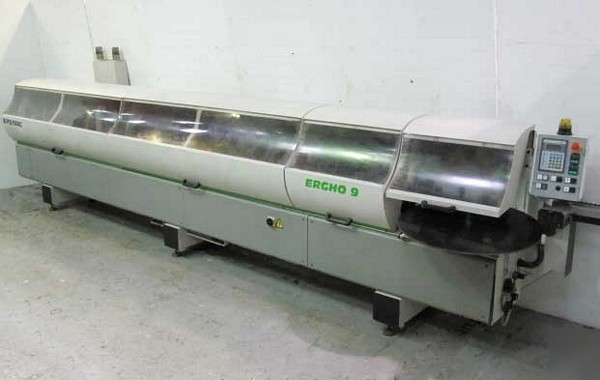

Biesse ergho 9 edgebander
serial no 04139year of manufacture 2000min height 10mmmax height 45mmmin height of strip 14mmmax height of strip 50mmmin thickness of strip 0.4mmmax thickness of strip in rolls 3.00mmmax cross section of solid lipping 15mm x 45mmthis machine is equipped withpremilling station used to rectify edge of panel before processing using 2 mills rotating in opposite directionsglue unit applies the glue strip feeder can apply edgebanding strip in rolls or in strips. 2 thermo regulators: 1 for melting temp one for temp of glue on the roller end trimming units end trim the edgebanding flush to the ends of the panelsupimposed double edge trimming unit used to rough cut and trim top and bottom edges flush with paneltilting double edge trimming unit used to trim or chamfer edgebanding strips adapting to the panel by means of 2 vertical copiers and 2 horizontal copierschamfering unit used to chamfer the corners of thin edgebanding strips round pvc or abs adapting to the panel by means of 2 vertical copiers and 2 horizontal copierfour motor rounding unit used to round off front and backof edge banding strip applied to softformed or post formed panelsglue scraper unit used to clean off residual glue with straight melamine and PVC strips. top tool positions itself automaticallyhot air blower unit used with machined ABS to revitalise colourbrushing unit cleans edgebanding strips and edge of the board
