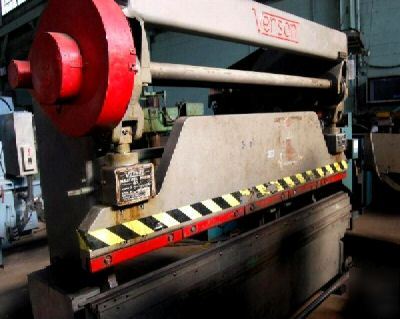

6' x 10 ga verson 45-ton mechanical press brake #25459
6' x 10 GA VERSON 45-TON MECHANICAL PRESS BRAKE
New 1954, Serial No 10966-2078, Model 2078
Tonnage Capacity......................... 45 TON
Overall Length of Bed and Ram............ 8'
Distance Between Housings................ 6'6"
Bending Capacity Over 1-1/8" Die Open.... 6'6" x 10 GA
Bending Capacity Over 7/8" Die Opening... 7'6" x 12 GA
Bending Capacity Over 5/8" Die Opening... 8' x 14 GA
Stroke Length............................ 2.5"
Shut Height, SDAU........................ 7.5"
Ram Adjustment (Power)................... 3"
Throat Depth............................. 7"
Strokes Per Minute....................... 40 SPM
Motor, Horsepower/RPM.................... 3 HP/1725 RPM
Electrical System........................ 220-440/3/60
Overall Dimensions, L x D................ 9'3" x 5'1"
Overall Height........................... 7'2"
Weight, Approximately.................... 8200 LBS
PRICE: F.O.B. OUR WAREHOUSE.............. $3,950.00
