30" arm 8.25" column willis rd-750 radial drill, 2 hp,
30" Arm 8.25" Column Willis RD-750 RADIAL DRILL, 2 HP,
30" Arm 8.25" Column Willis RD-750 RADIAL DRILL, 2 HP, #4MT, Box Table, Coolant

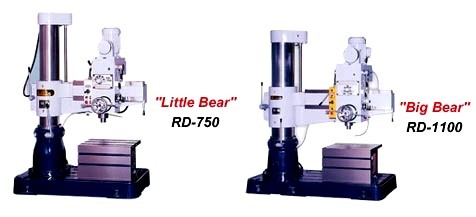

NEW WILLIS RADIAL DRILL "LITTLE BEAR"
19" horizontal drill head travel
Spindle stroke/spindle taper: 7-7/8" / MT4
Spindle speeds (RPM): 88-1500 (6)
Max distance, spindle center to column: 30-1/2"
Min distance, spindle center to column: 11-3/8"
Horiz travel of headstock: 19-1/8"
Max distance, base to spindle: 43-3/4"
M/C over height of column: 72-7/8"
M/C height from floor (max): 85-5/8"
Dimension of base (L x M x K): 50-3/8" x 25-3/16" x 5-7/8"
Effective area of table (R x S x T): 16" x 22" x 13"H
Dimensions: 56"L x 32"W x 81"H
