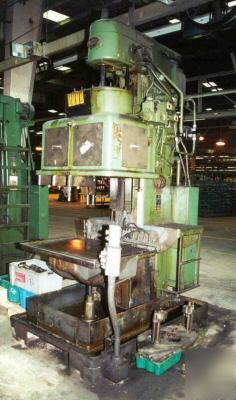

16 spindle natco #F3B multiple spindle drill,mod.# F3B
16 SPINDLE NATCO #F3B MULTIPLE SPINDLE DRILL
SERIAL ..................................... #F3B-131
MODEL ...................................... #F3B
NUMBER OF SPINDLES ......................... 16
DIAMETER OF UPPERS ......................... 1-1/2
SPINDLE SPEEDS ............................. 143 TO 2030 (VIA CHANGE GEARS)
WORKING AREA OF HEAD ....................... 32-1/2 X 21
AREA OF BASE ............................... 35 X 34
DISTANCE OF HEAD FLANGE TO BASE ............ 44-3/4 MIN. TO 67-3/4 MAXIMUM
DISTANCE OF HEAD FLANGE TO TABLE ........... 16-3/4 MIN. TO 46-3/4 MAXIMUM
CENTER OF HEAD FLANGE TO WAYS .............. 14-3/4
STROKE OF HEAD ............................. 18
FEED RATE .................................. 1 TO 31 IPM
