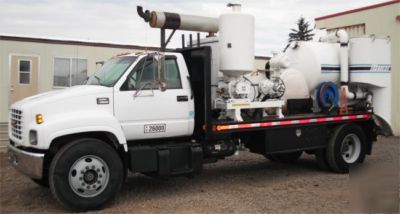

Vacuum truck vac truck 1997 gmc diesel *non cdl chassis
Truck : 1997 GMC Chassis. 155k miles. Diesel
*** Non CDL Truck ***cab & Chassis
This Vac N Dig System is Made by Vacmasters. ( Location Portland OREGON )
Vac N Dig System is An important Tool used with directional boring
enabling operators to POT HOLE to verify the exact location of utilities intersecting the bore path and also to REMOVE BENTONITE MUD SLURRY from the boring site.
2)Greater employee safety/fewer injuries
3) Increased equipment utilization by having one machine do both jobs
- Pot Holing and Slurry Removal.
POT HOLING: VAC-N-DIG's unique design allows operators to perform single pot holes and back fill directly from the soil collection canister or to perform multiple pot holes collecting all soil in the large 3 cubic yard tank for removal, back filling with sand or other material.
SLURRY REMOVAL: A simple change in vacuum hose connections allows the operator to quickly collect up to 580 gallons (1,000 gallons optional) of bentonite mud for recycling or disposal.
Detailed SYSTEM 3 SPECIFICATIONS
Engine Type: Turbo Diesel 4 Cylinder, Electric Start
Model: John Deere 4045T PowerTech Rating: 102 HP
Fuel System: Interconnected to Truck System
Electrical: 12 V DC, 85 AMP Power Transfer: Manual clutch, Belt Drive
Vacuum: 15" HG @ 1,000 CFM Air Lance: 180 PSI @ 165 CFM
Remote Operation: Up to 500 ft. Hose Sizes: Vacuum 3-4", Air 3/4"
Manual Cleaning only every 3-6 months
Canister: 55 Gal. w/Air Actuated Drop Door
Holding Tank: 3 Cubic Yard (580 gallon) Standard Up to 1,100 Gal. Optional 19" Posi-Seal Manway 3" Liquid Drain Valve
Fully supervised, Automatic Shut-Down, Tachometer, Air Pressure, Temperature, Remote Vacuum Gauge, Oil Pressure
Truck: 2 Ton w/Flat Bed Body 8' x 16' Trailer: 5th Wheel, GVW 18,000
100' of 3/4" Compressor Hose, Fiberglass Air Lance, Underbody Storage Tubes
Tool Boxes (under and/or above deck)
Retractable Compressor Hose Reels
