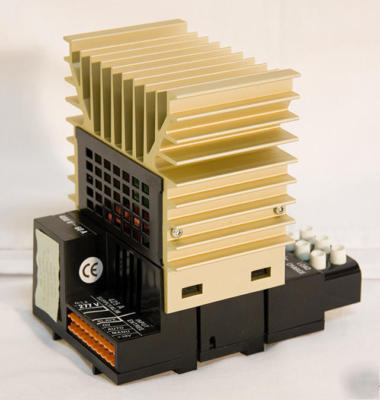

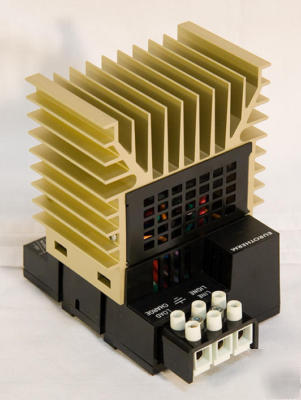

Solid state contactor eurotherm
* DIN rail or panel mounting
* phase angle (with opt current limit)
* Partial load failure detection
compensation. They are available in a broad range of firing modes, inputs, features and useful options. They may be back-of-panel or DIN Rail mounted. They are compatible with the REMIO digital communications interface.
15A, 25A, 40A, 63A, 75A, 100A and 125A
120V, 240V, 415V, 440V, 480V and 500V
15A: 134H x 98W x 94D, t 0.6kg
40A/63A: 134H x 116W x 155D, 1.2kg
75A/100A/125A: 190H x 117W x 190D, 2.0kg
resistive, short wave infrared (req. REMIO)
resistive (fixed or variable), short wave infrared or inductive
DC Logic-voltage: 10V (>8V ON: <2V
OFF) 320 or 24V (>16V ON : <2V
DC Logic-current : 20mA (>5mA ON:
<0.5mA OFF), input impedance 10
AC Logic-voltage: 24V (>20V ON: <6V
OFF) 2K or 48V (>30V ON: <10V OFF),
input impedance 3K 240V (>90V ON:
<35V OFF), input impedance 9.3K
DC voltage: 0-5V (70K), 1-5V (75K), 0-
10V (85K) use 0-5V for manual control
DC current: 0-5mA (impedance 1K), 0-
10mA (imp. 470 ), 0-20mA (imp. 270 ),
fast cycle, single cycle, slow cycle and
phase angle (with optional current limit)
Panel, symmetrical or asymmetrical DIN rail
