Melles griot 2MW helium-neon laser 05-lhp-121

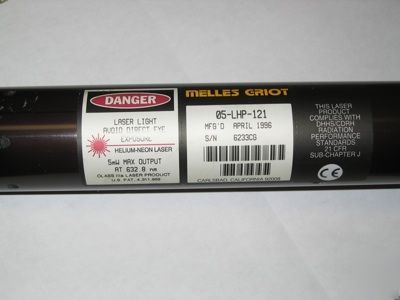

Melles Griot 2mW Helium-Neon Laser
Melles Griot offers a selection of red 632.8 nm helium neon cylindrical lasers with long lifetimes, excellent stability, and the field proven performance that made Melles Griot the worldwide laser leader.
High power laser heads up to 35 mW, ideal for Raman spectroscopy, holography, fast scanning, test and measurement applications that benefit from increased signal to noise ratio.
Class II <0.95 mW lasers for pointing, alignment, or teaching applications requiring additional eye safety precaution.
Tight output beam characteristics to help achieve optimum resolution and repeatable, reliable performance.
Multimode (MM) lasers up to 30 mW with high order mode content for more uniform beam profiles and efficient power output.
Rugged designs and packaging allows mounting in a variety of orientations without sacrifice to power or performance.
Power Output: 2.0mWLaser Head Length, Diameter: 271.8x44.5 mmBeam Diameter 1/e2: 0.59 mmBeam Divergence: 1.35Max Mode Sweep: 5%Logintudinal Mode Spacing: 687 MHzOperating Current Nominal: 6.5 mAOperating Voltage: 1790
