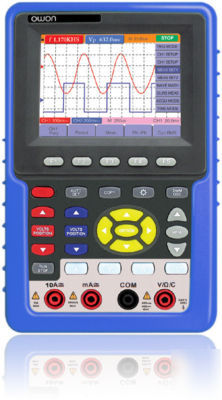

Hand held oscilloscope owon HDS2062M-n (hds HDS2062)
HDS2062M-N digital multimeter and storage oscilloscope
The new digital multimeter and storage oscilloscope HDS2062M-N offers reliably and high quality measurement technology for a really good price.
The colorful LCD panel with the resolution of 320 x 240 makes the wave easy to read, especially when a big data or many wave covered reciprocally. Wherever and whenever, you will view the best display for all info by this LCD panel.
The HDS2062M-N offers 60 MHz bandwidth and a sample rate of 250 MS/s in dual Channel.
Delivery including aluminium case, lithium accu, 2 probes, USB cable, pc software, power adapter and manual.
* Multimeter details HDS2062M-N
* VoltagesDC and AC 100 V to 400 V ( 1% 1 Digit)
* CurrentsDC and AC 10 A to 20 A ( 1% 1 Digit to 3% 3 Digits)
* Resistance0,1 to 40 M ( 1% 1 Digit to 1,5% 3 Digits)
* Capacitances10 pF to 100 F ( 3% 3 Digits)
* Diode testForward voltage 0 to 1,5 V
* Oscilloscope details HDS2062M-N
* Real-time sample rate250 MS/s real time
* Display3.8" TFT LCD with 4096 colors
* Max. Input voltage400 V (peak)
* Real-time sample rate10 S/s to 250 MS/s real time
* Time base 5 ns/Div. to 5 s/Div.
* Memory6000 points on each channel
* Analog digital converter (A/D)With the resolution of 8 bits, make sampling on both channels synchronously.
* Sensitivity range (V/div)5 mV/Div to 5 V/Div.
* Displacement range 10 Div. (5 mV - 5 V)
* Trigger displacementPre-Trigger: 655 Divisions
* Signal system and line/field frequency (Video triggering mode)Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency.
* Cursor measurementVoltage difference ( V) and time difference ( T) between cursors
* Auto measurementPeak-to-peak value, average value, root mean square value, frequency and cycle.
The delivery includes an aluminium case, lithium accu, 2 probes, USB cable, pc software, power adapter and manual.
