Hypercom S9C/sc pinpad with card swiper smart card read

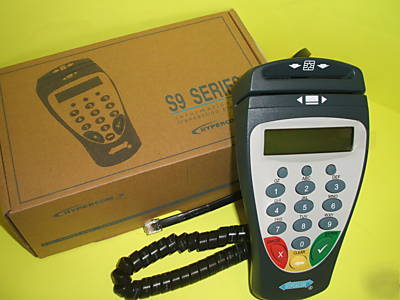

Brand New Hypercom Pin Pad S9C/SC Card Swipe and Smart Card Reader in Original Box with Factory Warranty.
This S9C/SC Pin Pads will work with The Hypercom series Equipment:T7p,T7plus,T77F,Ice Series,Optimun Series Etc.This Pin Pads need to be Encrypted,The price to Encrypt this Pin Pads is an additional $25.00.Please when you purchase this item let us know if you want them to be Encrypted:
Pin Pad not Encrypted is : $ 189.95
CALL US TO PLACE YOUR ORDER OVER THE TELEPHONE OR IF YOU HAVE ANY QUESTIONS ABOUT OUR PRODUCTS
A strategic combination of form and functionality
Unique custom decoration creates a new vehicle for brand awareness
Cost-effective and easy-to-use PIN entry device
Meets the latest security standards
Easily integrated with existing POS devices
Reads Both Smart and Magnetic Stripe Cards
* Cost-effective and easy-to-use PIN entry device
* Unique custom decoration creates a new vehicle for brand awareness
* Meets the latest standards
* Range of magnetic stripe and chip card reader options
* Easily integrated with existing POS devices
tangible, significant advantages over the competition.
* Modern ergonomic design fits comfortably in the hand and makes it easy to use
* Bright two-line backlit display creates easy viewing in diverse environments
* Unique custom decorating creates a new vehicle for brand awareness.
* Meets stringent security requirements, including a processor and RAM encased in epoxy with a secure cryptographic modules, DES, 3DES, Master/Session, DUKPT and 3DES DUKPT support
* Physical 16-button keyboard configuration for ADA-compliant PIN entry
* Two optional configurations facilitate smooth migration - the S9S features integrated chip card reader and the S9SC features an integrated chip/magnetic stripe card reader
* Features Hypercom plug and play software, making it backward compatible with T7, ICE and Optimum terminals
* Complete set of software utilities to enable rapid integration into your existing POS terminal or ECR system.
Backlight: 25,000 (calculated)
Magnetic stripe: (optional); Tracks 1, 2 (standard), Tracks 2, 3 (optional); 400,00 reads (calculated)
Chip card: (optional); EMV 4.0 certified; ISO 7816; non-captive; 3V and 5V cards; two SAM sockets
PIN pad port: RS-422 PIN (standard), RS-232 3-wire (optional)
7.5 - 14 VDC, 100mA (standard)
Key management: DUKPT or 12 master/session keys
3.54 in x 6.73 in x 2.09 in / 9.0 cm x 17.1 cm x 5.3 cm
.5 - .6 lbs/.22 - .27 kg (depending on the configuration)
Humidity: Max 85%, non-condensing
100,000 hours (MTBF calculated)
PIN pad with magnetic stripe reader (S9C)
PIN pad with chip card reader (S9S)
PIN pad with magnetic stripe and chip card readers (S9SC)
