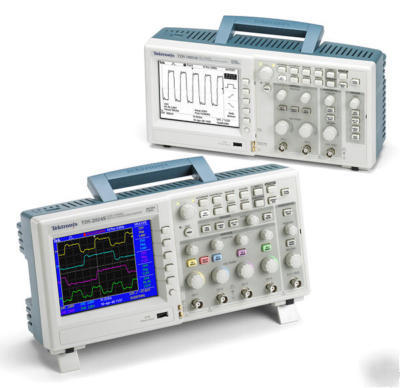

New brand tek TDS2014B 100 mhz, digital storage oscillo
* Features & Benefits of the TDS2014B:
* 1 GS/s Sample Rates up to 2 GS/s Real Time
* Removable Data Storage via Front Panel USB Port
* Seamless PC Connectivity via USB Device Port, with OpenChoice and NI SignalExpress PC Software
* Advanced Triggers Including Pulse Width Trigger and Line-selectable Video Trigger
* 11 Automatic Measurements
* Multiple Language User Interface and Context-sensitive Help
* Direct Print to all PictBridge Compatible Printers via USB Device Port
* Education and Training
* Manufacturing Test and Quality
The TDS1000B and TDS2000B Series digital storage oscilloscopes deliver an unbeatable combination of superior performance, unmatched ease-of-use, and affordability in an ultra lightweight, portable package. These new products extend the performance and ease-of-use features in the former TDS200 Series, the benchmark for low-cost oscilloscopes.
Affordable Digital Performance
With up to 200 MHz bandwidth and 2 GS/s maximum sample rate, no other color digital storage oscilloscope offers as much bandwidth and sample rate for the price. The TDS1000B and TDS2000B Series oscilloscopes provide accurate real-time acquisition up to their full bandwidth. These instruments offer advanced triggering, such as pulse width triggering and line-selectable video triggering, and 11 standard automatic measurements on all models. The Fast Fourier Transform (FFT) math function allows the user to analyze, characterize and troubleshoot circuits by viewing frequency and signal strength (standard).
The simple user interface makes these instruments easy to use, reducing learning time and increasing efficiency. Classic, analog-style controls provide instant, front-panel access to the most frequently used functions. The auto-set function automatically detects sine waves, square waves and video signals, and provides readouts of relevant measurements. This function also allows the user to select additional views of the signal such as rising and falling edges, video lines and fields, and FFT.
The probe check wizard aids the user in setting the attenuation factor and compensating the probe. The context-sensitive help menu with indexed and hyper-linked topics allows the user to selectively learn about the operation of any oscilloscope function. The color LCD display on the TDS2000B Series models dedicates a different color for each trace and its associated readouts to simplify viewing complex signals on multiple channels.
