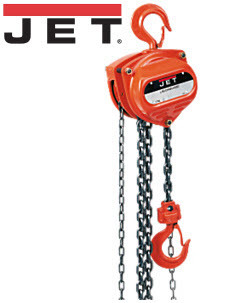

Jet 1 1/2 ton 10" lift


Part Number: 101515 / Model Number: L-90
This item is unused surplus in great condition; with this item regularly retailing at over $450.00 it s a great save!
* Full range capacity 1/2 to 60 tons
* 29 standard models in stock from 10' to 30' lifts
* Compact and portable for ease of positioning material
* Engineered for commercial and industrial lifting applications
* 10', 15', 20' and 30' lifts standard, custom length lifts available
* All steel construction with a durable powder coat finish
* Lightweight, compact design for low headroom applications
* Completely enclosed Weston type automatic brake system for positive load spotting
* Triple-spur gears provide high efficiency with minimum effort
* Heat treated and hardened grade 80 load chain
* Smooth rolled edge on hand chain cover prevents side pull jamming
* Wide throat drop forged safety hooks for easier rigging
* Standard hand chain drop equals lift length
* Proof tested with test certificate
* Complies with OSHA, ANSI/ASME B30.16 and HST-2 standards
* Capacity 1 metric ton
* Rated Capacity 3307 pound
* Standard Lift 10 '
* Headroom 13 "
* Number of Falls 1
* Load Chain Diameter 7.1 mm
* Required hand chain (ft.) to lift load 1' 60
* Required pounds of pull to lift capacity 91
* Height 7.8 inch
* Width 10.4 inch
* Length 9.4 inch
* Net Weight 35.2 pound
