> Weinschel 41-6-12 attenuator 6DB 0-18GHZ 10W <1.35 swr
Weinschel 41-6-12 attenuator 6DB 0-18GHZ 10W <1.35 swr

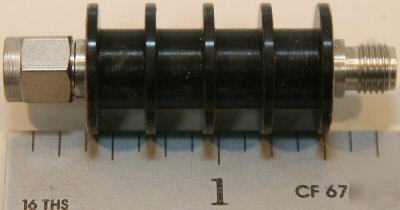

Weinschel 41-6-12 Attenuator 6 dB, DC-18 GHz, 10 Watt, <1.35 VSWR
Weinschel 41-6-12 Attenuator Specifications:
* Nominal Deviation: 0.30 dB
* Maximum SWR, DC to 8 GHz: <1.20
* Maximum SWR, 8 to 12.4 GHz: <1.30
* Maximum SWR, 12.4 to 18 GHz: <1.35
* Power Input Peak: 1 kW (Max)
* Power Coefficient: <0.0015 dB/dB/Watt
* Temperature Coefficient: <0.0005 dB/dB/ C
* Temperature Range: -55 C to 125 C
* Connectors: SMA(Female)/SMA(Male)
