Wheel dresser sine slide dresser toolmaker/ machinist

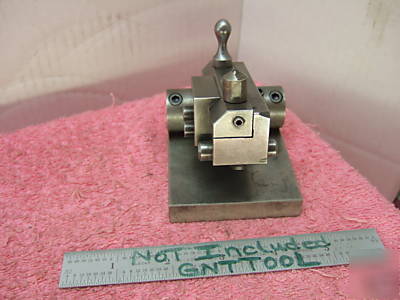

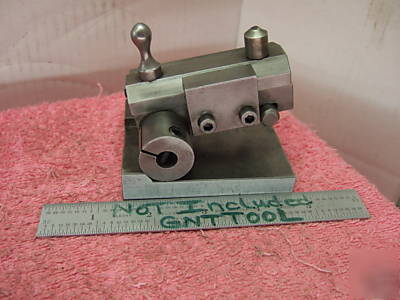

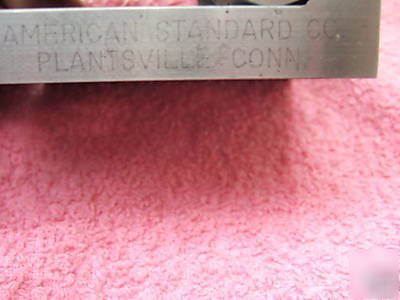

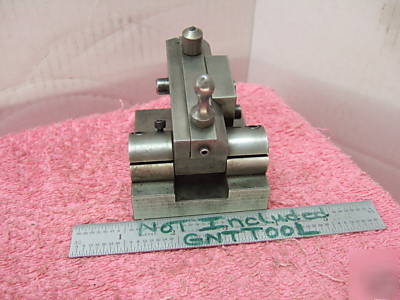

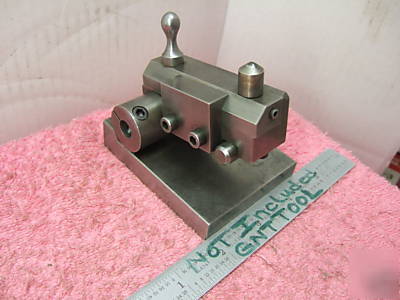

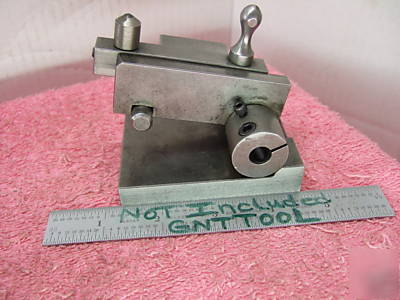

WHEEL DRESSER SINE SLIDE DIAMOND DRESSER ON A 2" CENTER DISTANCE BETWEEN THE ROLLS. AMERICAN STANDARD CO. PLANTSVILLE CONN. COMES WITH NEW (1) 3/8" SINGLE POINT DIAMOND IN NEW CONDITION. LOCKING DEVICE WORKS VERY WELL TO LOCK THE ANGLE. NO HITS, DAMAGE OR RUST ON THIS BEAUTIFULL TOOL!!!!!! TOOL HAS ELECTRO-ETCH ON BOTH SIDES OF BASE WITH COMPANY NAME " AMERICAN STANDARD CO. PLANTSVILLE CONN." AND "SINE X 2.0" + .300" = ANGLE" ON OPPOSITE BASE SIDE. MOORE TOOLS ALSO OFFERS A SIMILAR OR EVEN IDENTICAL TOOL FOR ONLY $3000! CHECK MOORE TOOLS WEBSITE FOR PICS AND PRICE FOR A NEW TOOL!!!
THIS IS USED ON SURFACE GRINDERS WITH MAGNETIC CHUCKS TO DRESS BOTTOMS AND SIDES OF GRINDING WHEELS AT A PRECISEANGLE FOR PRECISE GRINDING APPLICATIONS WHEN USED WITH MAGNETIC CHUCK ON CORRECT MACHINE. BASE (1) MEASURES 2.660" WIDE x 3.273" LONG AND IS 1-15/16" TALL OVER THE SLIDE. SLIDE MOVEMENT IS APPX. 1" TO 1-1/2" APPX OF TRAVEL.
