New sony impela - CS50N-mt - network camera -

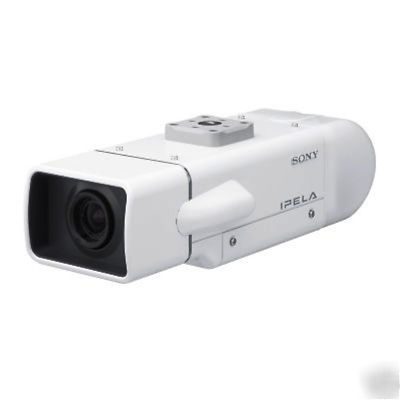

The unit is a high resolution network ready color video camera for indoor use. This is a professional grade device used in malls, stores, and high traffic areas for security Surveillance. The device can be mounted to ceilings or walls with oiptional mounting hardware and power via various power sources (not supplied). This is a fixed mounted device and does not move but covers a wide area.
Manufacturer's Warranty Card Included
Some notes: The manufacturer packaging is not sealed since this device is typically a professionally installed item not sold in a retail store. We opened and verified all contents of the package to assure all items are present and sealed with our security seal.
* Software, warranty card, manual, and associated hardware
* High Quality Images and High Sensitivity: Employing the latest 1/3" type SuperExwave CCD for exceptional picture quality and with a minimum illumination level of 0.4 lx at F0.95, the camera captures high-contrast images even in low-light conditions
* High Frame Rate: Maximum frame rate of 30fps in VGA (640 x 480) in both MPEG4 and JPEG
* Slim and Stylish Design with Front and Rear Covers
* Dual Codec (Dual Streaming) Capability: The SNC-CS50N is equipped with dual encoding capability that enables the camera to generate both MPEG4 and JPEG images simultaneously
* Vari-Focal Lens: The SNC-CS50N comes equipped with a CS-mount, IR compensated vari-focal lens with an auto iris function that covers the frequently used horizontal viewing angles of 94 to 35 degrees. Because the maximum aperture is F0.95, the lens can provide remarkable image quality even in low-light conditions
* Image Stabilizer: Minimizes the appearance of shaky images caused by low-frequency vibration so that stable and sharp images are provided
* Day/Night Function: Provides optimized sensitivity in both day and night environments
* Anti-tampering Function: Incorporating a digital signature technology using Public Key Infrastructure (PKI), the SNC-CS50N allows users to verify the origin of images and helps prevent tampering
* Intelligent Alarm Function: Intelligent Motion Detection-Unlike conventional motion detection which typically detects luminance level differences, the SNC-CS50N utilizes the last 15 frames to calculate motion detection information
* Intelligent Alarm Function: Intelligent Object Detection-The SNC-CS50N can detect objects that have been left in one place for a specified duration
* AC24V, DC12V, or PoE Operation
1/3type CCD imager (SuperExwave Technology)
NTSC: 380,000 pixels, 768 (H) x 494 (V)
F0.95 (Wide end), F1.6 (Tele end)
0.4 lx (AGC ON, F0.95, 50IRE) (Color)
0.04lx (AGC ON, F0.95, 50IRE) (B/W)
Day/Night, Object detection, Image stabilizer, Anti-tampering
640 x 480(VGA), 320 x 240(QVGA), 160 x 120(QQVGA).
JPEG, MPEG4, H.264 (Selectable)
Windows 2000/ Windows XP - or higher
Pentium4 1.5GHz or higher (2.4GHz or higher is recommended)
Microsoft Internet Explorer Ver6.0 or higher
Approx. 750g without Front/Rear covers
Approx. 880g with Front/Rear covers
84 x 69 x 196 without Front/Rear covers
96.7 x 69 x 265 with Front/Rear covers
