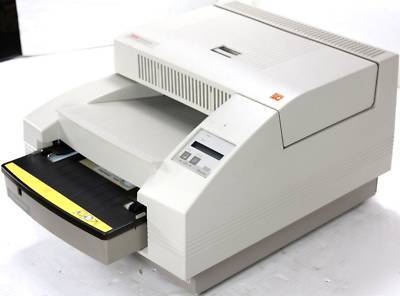

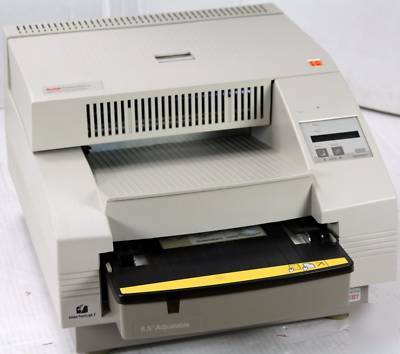

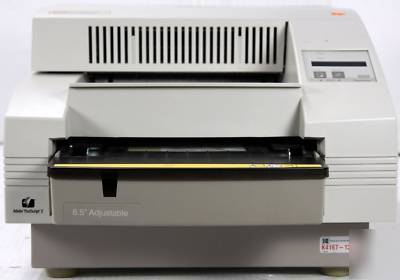

Kodak 8670 ps 8670PS professional thermal dye printer
This listing is for a thermal printer.
* Make: Eastman Kodak Company (Kodak Professional) (sometimes labeled "Codonics")
* Model #: 8670-PS (8670PS)

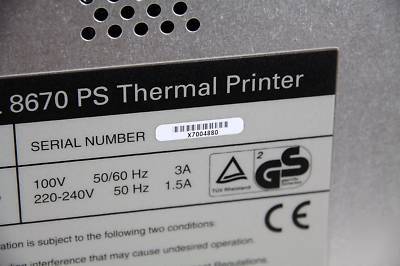

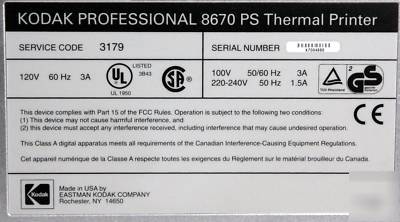

* 220-240V / 50Hz / 1.5A
* Description: Thermal Printer
The 8670 PS Thermal Printer is the first thermal dye printer to support Adobe Postscript 3 Language. With Adobe Postscript 3, you get smooth shading, 136 embedded fonts, and enhanced Adobe Postscript Language processing.
KODAK PROFESSIONAL 8670 PS Thermal Printer

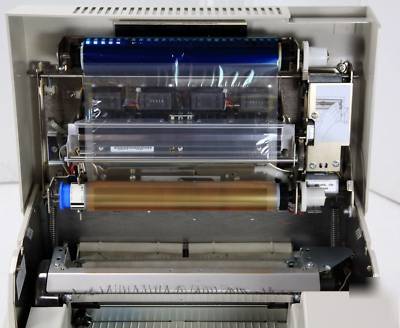

* Printing process: Thermal dye diffusion
* Processor: 133 MHz 4640 MIPS RISC
* Print resolution: 300 pixel-per-inch continuous-tone

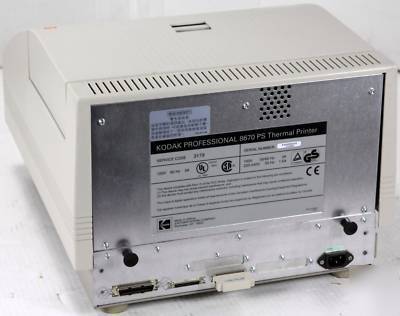

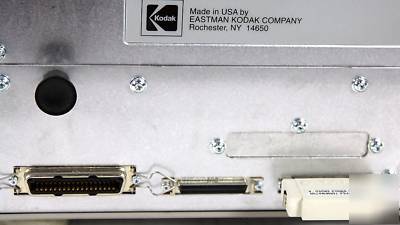

* SCSI (2 ports), IEEE 1284 Parallel
* Optional Network Interface Card supports TCP/IP, Ethertalk, Novell Netware, NetBEUI, Netbios, and DLC/LLC protocols
* Printer Drivers and Fonts
* ADOBE PHOTOSHOP export plug-ins for MACINTOSH, WINDOWS 95, WINDOWS NT 3.51/4.0, WINDOWS 2000 and WINDOWS XP applications
* POSTSCRIPT drivers for MACINTOSH, WINDOWS 95, WINDOWS NT 3.51/4.0, WINDOWS 2000 and WINDOWS XP
* API Tool Kit available for developers
Physical Characteristics/Operating Requirements
* Physical dimensions: 16.6" W x 22.5" D x 12.0" H (422 mm x 571 mm x 305 mm)
* Weight: 56 lbs (25.4 kg); 71 lbs. boxed (32.2 kg)
* Operating temperature: 59 F to 86 F (15 C to 30 C)
* Relative humidity: 20% to 76%
* Operating sound level: <57 dB
* Automatically adjusts to input voltage of 90 to 250 V AC, 47 to 60 Hz
* Power consumption: 250 watts maximum
* UL 1950; CA 22.2 No. 950; TUV EN 60950
* FCC Part 15; Subpart J; Class B; I CES-003, Class B; EN 500 81-1
* EN 500 82-1; VCCI, Class 2; CE Mark
Drivers, etc. are located at http:// /global/en/service/software/8670/8670psDrivers.shtml
