Canberra hpge germanium detector 40%+inspector 1250 mca
* CANBERRA HPGe GERMANIUM DETECTOR 40% R.E. [nominal] - Compact dewar [ approx. 2 liters N-2 capacity -can be used vertically in Canberra "Submarine" waterproof chamber to perform unique capability underwater sediment contamination surveys by lowering detector and housing into water]
* CANBERRA INSPECTOR MCA [ Model 1250 InSpector Spectroscopy System ] -w/o separate computer to cable to InSpector and run Genie 2000 Spectroscopy Software
* Two new 6.0V Lithium Ion Batteries - 4200 mAh /each - w/ Battery charger included
* Cable connecting InSpector to Computer USB port

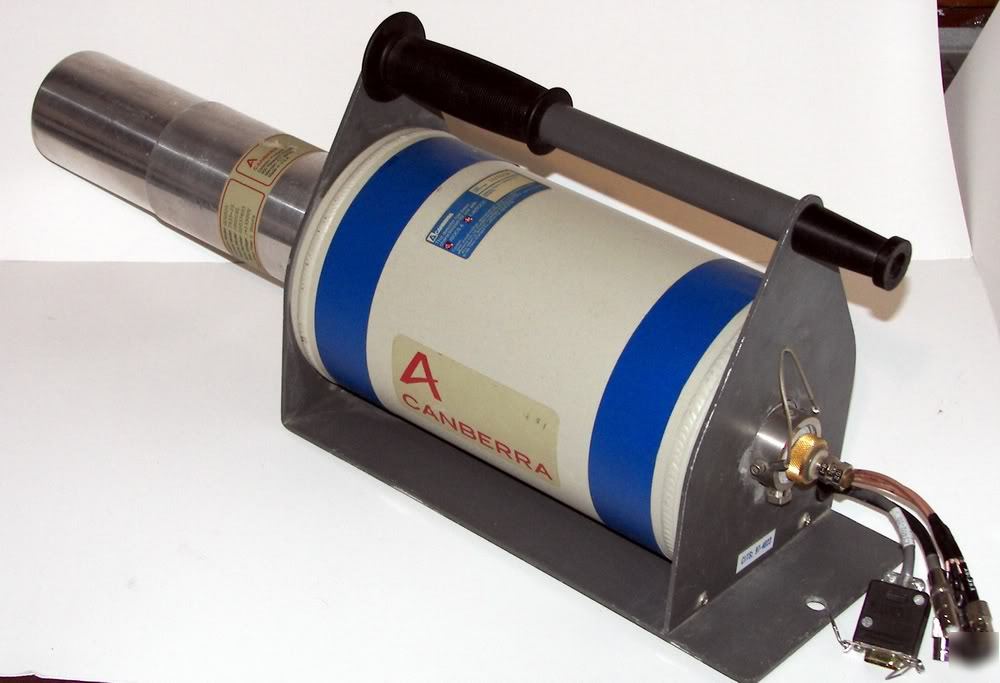

HPGe DETECTOR [ 40% RE] & CRYOSTAT Image:
HPGe DETECTOR & All Attitude Orientation CRYOSTAT -Side View:
HPGe DETECTOR HEAD showing MODEL Numbers
4020 = Nominal 40% RE, 2.0 keV FWHM resolution:
InSpector Multichannel Analyzer
Model 1250 InSpector Spectroscopy Unit
See link below for Model 1250 InSpector Spectroscopy System -Hardware Manual:
http://lartpc-docdb.fnal.gov/0004/000426/001/Model_1250_InSpector_User's_Manual.pdf
ANGLED VIEW OF CANBERRA - InSpector 1250 Portable MCA:
BACK SIDE VIEW OF CANBERRA - InSpector 1250 Multichannel Analyzer [ Custom Cable is included to connect InSpector with detector and another cable to conect InSpector to Computer via USB port:
VIEW OF CUSTOM Canberra CABLE SET INCLUDED in package to connect Canberra HPGe Detector to InSpector 1250 Multichannel Analyzer:
This Multi-Attitude Special Single Port Cryostat [MAC] portable detector also has a special cryostat design that will not spill LN-2 regardless of detector orientation.
I have a detailed User Manual for this Canberra portable Gamma Spectroscopy Detector & Cryostat unit:
The User's Manual also includes Detector Information Characterization reports.
This detector is a Closed-end coaxial detector with a Diameter of 62.5 mm and a Length of 56.5 mm.. It is described as a Single Port MAC having a 3.0" endcap.
The Canberra detector Purchase Specification and Performance Data Sheet shows NOMINAL specs as:
Canberra's most recent actual data sheet for this detector based on lab characterization tests they did on this detector some time after it was sold, and certain mods had been made, show it to have:
* Relative Efficiency: 43.7 %
* 1.8 kev [FWHM] at 1.33 MeV
* 3.3 kev [FWTM] at 1.33 MeV
* 0.88 kev [FWHM] at 122 keV
* 1.61 kev [FWTM] at 122 keV
I have specific CANBERRA ISOCS CHARACTERIZATION DOCUMENTATION for the above detector which will be included.
The Model 1250 InSpector uses Gaussian Shaping, 1 and 4 microsecond Shaping range, and has a 100MHz Wilkinson Type ADC. This combination of the portable Canberra InSpector MCA, and portable high-efficiency [ 40% nominal R.E. ] HPGe hand-held detector provides a versatile, multi-purpose system which meets the field gamma spectroscopy measurement needs faced in:
* Decommissioning and decontamination work
* Emergency Response environmental sample analysis
* Emergency Field gamma spectroscopy of deposition activity
* Routine field gamma spectroscopy
* And many other in-situ applications
Genie 2000 3.0 Gamma Spectroscopy Operations Manual [This is quite comprehensive and includes basic theory and information about using both NaI and Ge detectors
* Genie 2000 3.0 Gamma Spectroscopy Customization Tools Manual
* Genie 2000 3.0 Read Me First Installation Manual
* LabSOCS -Advanced Topics Users' Group Seminar -2004
* Model SISXSRCE Check Source Fixture-Users's Manual
* ISOCS/LabSOCS -Detector Characterization Report
Detector for this detector
* A binder from a training class: Advanced ISOCS Measurements unsing the InSpector [SU-476-3 ]
Also, I can supply other specialized user documentation that will facilitate spectral analysis. This includes basic spectroscopy documentation and accessories including all Software Manuals for the Canberra InSpector unit as described above.
THE DETECTOR WAS IN VERY GOOD OPERATING CONDITION WHEN TAKEN OUT OF SERVICE -
Condition of the InSpector Model 1250 unit is unknown at this moment - waiting on the two battery packs and battery charger
See Model 1250 InSpector Spectroscopy System Hardware Manual [67 pages] link below:
CANBERRA NIM MODULES & RACK - 5 NIM MODULES in EACH OF TWO NIM BIN RACKS =
FULL VIEW OF ALL 5 NIM MODULES IN RACK [plus NIM Rack Model 2000]:
CLOSER FRONT VIEW OF 4 LEFT NIM MODULES [Accuscan to right is not a NIM Module -a plate with connectors] :
* Model 2000 Bin/Power Supply
* HV Power Supply - Model 3102
