Testo 556-1 wireless digital refrigeration analyzer kit

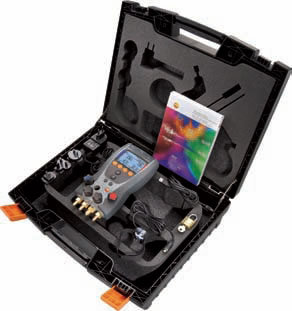

Testo 556-1 Wireless Digital Refrigeration Analyzer Kit
Testo 556-1, electronic refrigeration system analyzer, brass connections, calibration protocol and batteries included.
Fully Integrated Service Tools for ALL Refrigeration Systems. Testokool digital refrigeration service manifolds provide complete system information, pressures, temperatures and PT charts for all refrigerant systems. Upgrade your gauges, instruments, thermometers, charts, and manifolds with ONE easy-to-use-meter! Download logged data to a PC (560 only)
* Supermarket refrigeration racks
* Larger tonnage A/C rooftops or chillers
* Food processing plants and cold storage houses
* Refrigerated trucks and cargo containers
* Commercial refrigerating plants/process refrigeration
* Walk-in coolers, deep freezers, supermarket freezers, food warehouses and convenience stores
* High/Low side pressures (models 555,556,560)
* Line temperature (556 & 560)
CALCULATE (35 built in refrigerants)
* Fully functional, 3 way manifold
* P/T charts for 35 refrigerants (35 pre-installed) No more wallet cards!
* Superheat and subcooling calculations at the touch of a button
* Update new refrigerants FREE from the internet
* Vacuum sensor with over-range protection (551 & 560)
* Leak check w/auto temperature correction
* Create professional reports, download to a PC (560 only)
* Store thousands of tests in protected onboard memory
* Maintain electronic service logs
* Store and display data for 9 vacuum pumps (551 only)
* Troubleshoot system transients, datalog over time
* Select MIN/MAX/HOLD with one button
* Special Feature: temperature compensated pressure readings allow use in any weather
DESIGNED FOR YEARS OF TROUBLE FREE USE
* Liquid/oil isolated industrial pressure sensors
* Stainless steel manifolds for use on all refrigerants including ammonia
* Rugged, all metal construction with acid and water resistant keypad
* "Goof-Proof" protected sensors on both sides
* Vacuum sensor over-range by-pass protection
* Pressure sensors designed for the high pressure refrigerants of the future
* Dimensions 7" x 4.5" x 1.5"
* Housing protection NEMA 12 (IP65)
* Pressure/Vacuum accuracy 0.5% full scale 1 digit
* Ambient temp. compensation from 14 to 122 F
* System connection 7/16 UNF
* Separating membrane 316L stainless steel
* Operating/storage temp. -4 to 140 F
* Compatible with any CFCs, CO2, fluorinated hydrocarbons, Nitrogen, Ammonia (551, 555-2, 556-2, 560-2 ONLY, Stainless Steel models)
* Measuring units Easily switch from English to Metric (SI)
