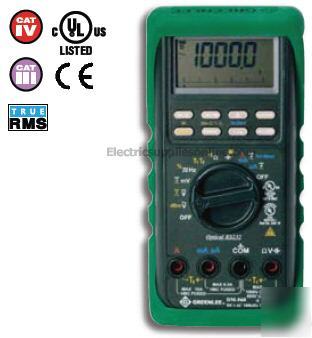

Greenlee dm-810A industrial digital multimeter DM810A
Spec:Voltage Measurement: 50.00, 500.0mV; 5.000, 50.00, 500.0, 1000V Amperage Measurement: 500.0, 5000 A; 50.00, 500.0mA; 5.000, 10.00A Resistance: 50.00, 500.0O; 5.000, 50.00, 500.0kO; 5.000, 50.00MO Capacitance: 50.00, 500.0nF; 5.000, 50.00, 500.0, 9999 F Frequency: 10Hz-125kHz Temperature: K type, -58 F to 1832 F (-50 C to 1000 C) Measurement Category: Cat IV, 600V; Cat III, 1000V
# DM-800 features: Autoranging, 3-5/6-digit, 5000-count display for greater accuracy.
# Frequency and capacitance measurements plus diode and continuity tests standard.
# Data hold to capture measurements.
# RS-232 capable, may be connected to a PC for extended measurement capability with optional optically-isolated interface DMSC-8L, purchased separately.
# Low ohm range calibration, subtracts test lead resistance.
# Backlit display for easy viewing.
# True RMS for no-compromise accuracy.
# Record max, min, and max-min readings.
# Crest capture (5ms peak hold) max, min, and max-min readings.
# Relative offset display mode to see relative changes in measurements.
# Temperature measurement standard.
# Accessories included: (1) 9V battery, carrying case (DM-820, DM-810), bead temperature probe (DM-820 only, 400 F/204 C max), test leads.
