Fpt transformer 11 kva 460/220Y/127 v 220 y 3 ph 11KVA
Federal Pacific Transformer Company

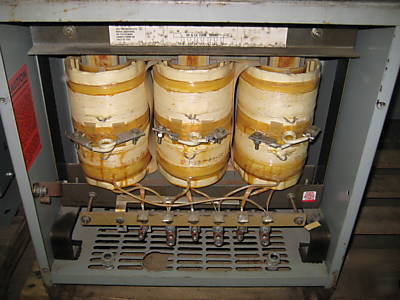

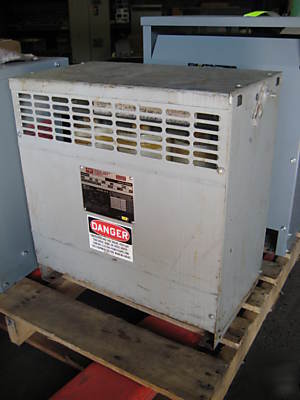

This Three Phase Transformer is in Good Condition both Externally and Internally. Surface Rust on both Sides and Top. There is no Catalog Number Listed on Label.
Dry Type Motor Drive Isolation Transformer AA
kVA: 11 PH: 3 HZ: 60 H.V.: 460 L.V.: 220Y/127 Amps: 29
220 Deg. C Insul. System FH3G Temp. Rise 150 Deg. C %IMP.: 7.8 WT. 175 Lbs
24" (Width) x 13" (Depth) x 23" (Height)
