Fieldpiece HB74 multimeter in canvas case (42243)

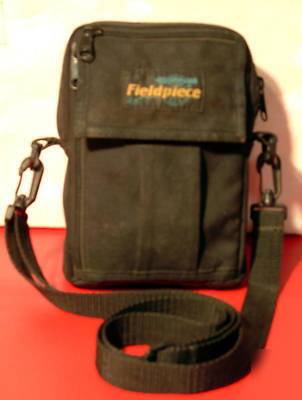

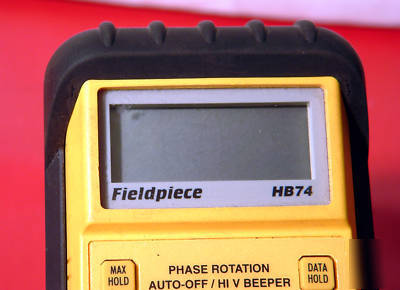

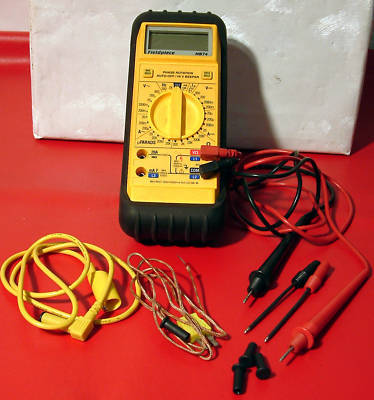

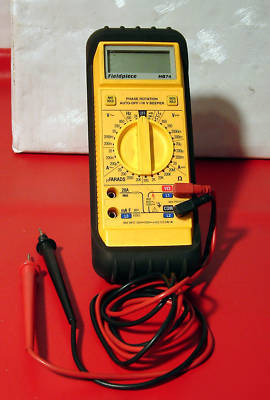

This item is a used Fieldpiece HB74 Multitester with multiple leads in original canvas case. It has been tested a works fine. The specs are included here, an excerpt from the manual available as a free download at http:// /pdf_docs/fieldpiece/HB74.pdf and list many of this unit's functional parameters:
Functional Specifications: Accuracy specifications good for 75 F 5 F, relative humidity less than 70%. Accuracy specified as % of reading number of least significant digits. For example if the actual parameter is 100 and the accuracy is specified as 1% 3, the measurement could be as high as 101.3 or as low as 98.7 on the 200 scale.
Ranges: 200mV, 2000mV, 20V, 200V, 600V
Resolution: 0.1mV on 200mV range
Accuracy: 1.2% 2 @ 50Hz to 500Hz; 2% 5 @
500Hz to 1KHz; 2% 5 @ 50Hz to 500Hz on
Conversion type: Average measuring, rms indicating (sine wave)
Ranges: 200mV, 2000mV, 20V, 600V
Ranges: 200 , 2K , 20K , 200K , 20M
Resolution: 0.1 on 200 range
Accuracy: 1% 1 on 200 to 200K ranges,
Open circuit voltage: <0.3V,<3V on 200 range
Range: 20MFD, 200MFD, 2000MFD, 20KMFD (microfarads).
Open circuit voltage: 3.2V max
Measures forward voltage drops across diodes and transistor junctions.
Fuse Test and Test Lead Safety Instructions,
Heavy duty: Case designed of hi-impact, fire retardant yellow Valox, fully "O" ring sealed
Display: 31/2 digit (LCD). Maximum reading of 1999
High Voltage beeper: "lightning bolt" icon in LCD blinks and beeps intermittently in VAC and VDC ranges when connected to 30V or greater
Data HOLD: "locks" reading range
MAX hold: "MAX" holds the largest reading
Polarity: Auto., pos. (+) implied, neg. (-) indicator
Overrange: (OL) or (-OL) is displayed
Continuity beeper: (<150 ) indicated by a continuous "beep" within 100 msec.
Low battery indicator: The "low battery" icon is displayed
Overload protection: Volts: 600VAC/600VDC rms 500VDC/350VDC, (15 seconds in 200mV ranges). MOVS installed for transient protection up to 6KV/10msec.
Ohms/diode/continuity/Hz: 500VAC/DC
Amps, capacitance: fast blow 0.5A/500Vmin (6.35X32mm) fuse (model RFM74) on mA jack, high energy 12A/600V(1.5X.375") fuse (model RFL712) on 10A jack.
Operating environment: 0oC-50oC at < 70% R/H
Storage temperature: -20oC-60oC, 0-80% R/H with battery removed from meter.
Temperature coefficient: 0.1 x (specified accuracy)/ oC (< 18oC or > 28oC).
Measurement rate: 2.5 times/sec.,nominal.
Auto-power off: Approx. 50 minutes.
Battery life: 300 hours typical with carbon-zinc.
Dimensions: 176mm (H) x 73mm (W) x 39mm (D). Wt. 340g.
Battery type: 9V NEDA 1604 type, IEC 6F22. AC current
Frequency response: 50Hz to 500Hz
Accuracy: 1.5% 3 on 200 A to 200mA ranges; 3.5% 3 on 20A range.
Voltage burden: 250mV on 200 A range; 400mV on 200mA range; 600mV on 10A range.
DC current Ranges: 20 A, 200 A, 200mA, 10A
Accuracy: 1.0% 1 on 20 A to 200mA ranges;
Voltage burden: 250mV on 20 A, 200 A ranges; 400mV on 200mA range and 600mV on 10A range.
Frequency Ranges: 200Hz, 2kHz (10Hz to 2kHz)
Accuracy: 0.5% 3 on all ranges
Duty cycle limits: at >30% and <70%
Overload protection: 500VDC or AC rms
Frequency range: 45Hz to 450Hz
Voltage range: 80VAC to 500VAC
Connection and dislay: Meter displays "L1L2L3" when all three leads are connected; "FOR" when they are connected in order. "REV" means you need to swap any two leads.
Agency compliance UL listed. CE certified to IEC1010 cat III 600V.
