> Vickers hydraulic posi traction valve FDC3-10-8T-33
Vickers hydraulic posi traction valve FDC3-10-8T-33

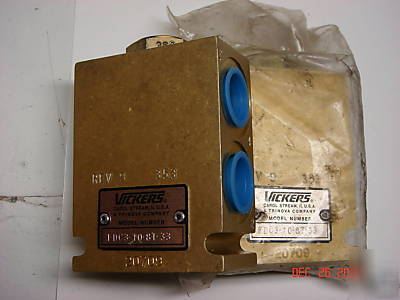

Vickers Posi-traction valve in aluminum housing
The FDC3-10 is a pressure compensated, spool type, screw-in, posi-traction
This valve is used in the dividing mode. It will take the inlet flow (port 3) and split
In the combining mode this valve will take the inlet flows from ports 2 and 4 and
combine them into port 3 according to the ratio specified.
Performance data is typical with fluid at 21,8 cSt (105 SUS) and 49
Typical application pressure (all ports) . . . . . . . . . . . . . . . . . . . . . . . 210 bar (3000 psi)
Cartridge fatigue pressure (infinite life) . . . . . . . . . . . . . . . . . . . . . . . 210 bar (3000 psi)
Rated inlet flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See model code, item
Temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cavity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C
Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . All general purpose hydraulic fluids such as:
Filtration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cleanliness code 18/
Standard housing materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Aluminum
Weight cartridge only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0,10 kg (0.22 lbs.)
Seal kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 889625 Buna-N
