Posipen - coating thickness gage - type a
POSIPEN - COATING THICKNESS GAGE - TYPE A
For measuring dry non-magnetic coatings on steel

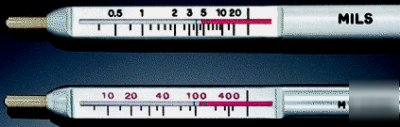

Range: 0.25 to 20 mils (inch scale) / Tolerance: =/- 10% and +/- 0.1 mil
Range: 5 to 500 microns (metric scale) / Tolerance: =/- 10% and +/- 2.5 microns
PosiPen can be placed with pin-point accuracy on any location of the part to be measured which other Gages are not able to reach.
PosiPen has a very small unique magnet and therefore can measure on extremely small parts, on peaks and valleys.

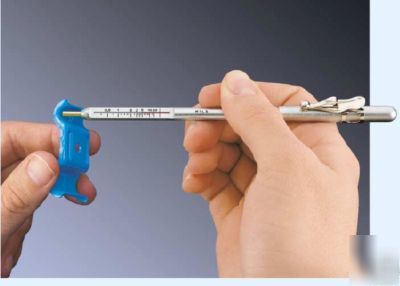

Easy to Use: Place the tip of the
PosiPen on the coated surface and allow the magnet to contact. Pull the PosiPen straight from the object to be measured while keeping close watch on the appropriate indicator. Note the reading when the magnet releases.

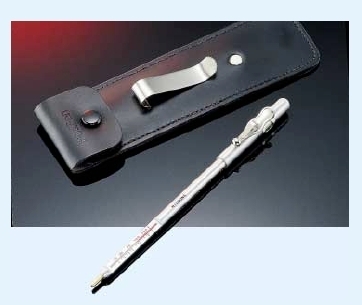

Easy to Carry: Just like a ball point pen, it is always there when you need it!
