Phd cts pneumatic cylinder actuator & proximity switch

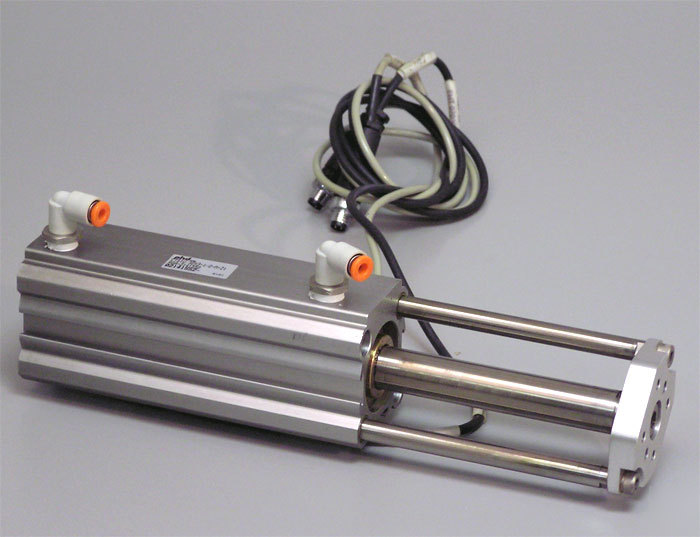

PHD CTS Pneumatic Cylinder Actuator & Proximity Switch
Use the links below to View More Images of the PHD Industrial Automation CTS 1U 32X3-1/2-M-Z1
Compact Non-Rotating Pneumatic Cylinder w/ Proximity Switches
PHD Side 5360 series Proximity Reed Switches
PHD CTS 1U 32X3-1/2-M-Z1 Pneumatic Cylinder Side
PHD CTS 1U 32X3-1/2-M-Z1 Pneumatic Cylinder Front Mounting Shaft
PHD CTS1U 32X3-1/2-M-Z1 CTS Compact Guide Non-Rotating Pneumatic Cylinder
PHD 5360 series Proximity ( Reed ) Switches
PHD Pneumatic Cylinder - Compact Non-Rotating Guide Rod
PHD SERIES 5360 Proximity - Reed - Switches
PHD Compact Non-Rotating Guide Rod Pneumatic Cylinder Features:
Series CTS Compact Guide Rod Cylinders excel in non-rotating cylinder
applications where unit length is critical. They also perform as light duty slides
where precise location is not required and side loading is limited. Optional shock
pads extend cylinder life and minimize piston noise. The shock pad design adds no
additional length to the cylinder.
* Advantages: Compact size, thru and threaded holes for easy cylinder mounting.
PHD SERIES 5360 Proximity - Reed - Switches Features:
Series 5360 Proximity - Reed - Switches are available in either AC or
DC models. They are ideal for use as inputs for many types of
sequencers and programmable controllers. In some cases, they can
be used to drive some relays or valve solenoids. However, electrical
transients (inrush currents or line spikes) associated with inductive
or capacitive loads can damage and shorten the life of the switch.
* Series 5360 Proximity -Reed - Switches are available for use on selected
PHD products, making it easy to interface these actuators with
various electronic controls.
* Low profile integral clamp mounting is easy to adjust over the
entire piston travel of the cylinder or actuator.
* Several switches may be mounted to control or initiate any
* An LED indicator provides convenient means for positioning
and troubleshooting circuits.
* Available in a Quick Connect model for easy installation
* Special current limit model available for AC applications where
inrush might otherwise damage the switch.
Above specifications are for the current model, some
specifications may vary slightly from the actual unit.
