> New bournes shaft encoder 16 cycles - type 3315C

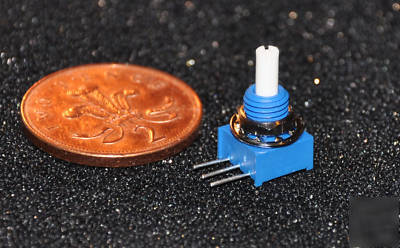

New bournes shaft encoder 16 cycles - type 3315C
The short form data is as follows :-
* Resolution, Pulses Per Revolution:16
* Output: 2-bit gray code, Channel A leads Channel B electrically turning clockwise (CW)
* Contact Rating: TTL compatible loads
I can email a data sheet for the base device (in .PDF form) or or it can be downloaded here :-
Postage is combined . You only pay postage on the first encoder.
