12 N50 2X1X1/2" neodymium magnets wind turbine epoxy+ni

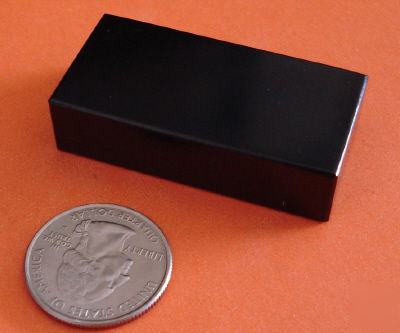

12 Pieces - N50 2" x 1" x .5" Neodymium Magnet blocks.
For wind generator magnets, coating and performance are the most important things to consider, we recommend Epoxy+Nickel+Copper+Nickel 4-layer coating for long term durability under all weather conditions, we don't recommend Epoxy single layer coating, please read details below. To have better performance for your wind generator, the higher grade the magnets, the better; we recommend at least N42 or higher grade for high performance.
Grade Makes a big difference ! The higher the grade, the stronger the magnet
Coating Makes a big difference !
Hugh Piggott talks about wind turbine failure caused by magnet corrosion due to bad coating in his book:
"........ the magnets themselves that can lead to a major failure in under 5 years............. Once the protective plating on the magnet is punctured, the magnet corrodes and swells gradually."
Nickel + Copper + Nickel 3-layer coating vs. Epoxy single layer coating
Epoxy single layer coating is THE LEAST durable coating from our experience.
Nickel + Copper + Nickel 3-layer coating is much more durable than Epoxy single layer coating because Epoxy single layer coating is thin and quicker to wear off, even a scratch can damage the coating easily.
Epoxy+Nickel+Copper+Nickel 4-layer coating vs. Nickel+Copper+Nickel 3-layer coating
Nickel+Copper+Nickel coating provides protection against moisture and oxygen but is prone to corrosion in salt and acidic conditions.
The combination of Epoxy and Nickel+Copper+Nickel coating is the best solution against both corrosion in salt, acidic conditions and moisture, oxygen.
We recommend Epoxy+Nickel+Copper+Nickel coated 2x1x1/2 magnet due to the superior Corrosion Resistance and excellent adhesion to metal surface of Epoxy+Nickel+Copper+Nickel coating than Nickel+Copper+Nickel coating.
In summary, Epoxy + Nickel + Copper + Nickel 4-layer coating is the most durable and most effective magnet coating. Nickel + Copper + Nickel 3-layer coating is less durable than Epoxy + Nickel + Copper + Nickel 4-layer coating. And Epoxy single layer coating is the LEAST durable coating for neodymium magnets.
Epoxy-Nickel-Copper-Nickel quadruple layer offers maximum protection and durability
Grade N50, 50 MGO, 87 lbs pulling force!!
Magnetized through .5" section, poles are on the 2" x 1" surfaces
All of our magnets are ISO certified. They are made by one of world's largest NdFeB magnet manufacturers.
