> 5 lot telescopic whip antenna retractable 5 sect hinge
5 lot telescopic whip antenna retractable 5 sect hinge

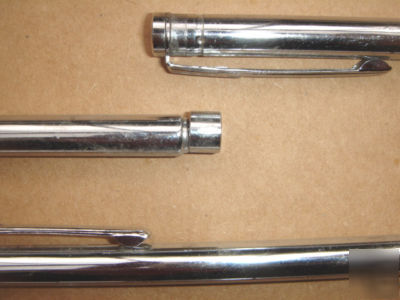

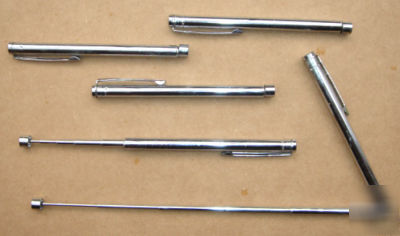

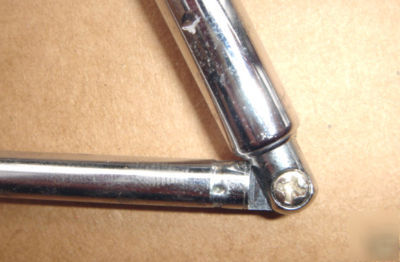

Telescopic antenna retractable element, Hinged. Aprox 4" retracted (11.4CM) and 13.5" fully extended straight out. Bottom section with pocket clip is 4.5" long and top hinged section is 9" long. The outermost tube is loose or semi-loose to rotate freely. This was designed as a divining rod. But these surplus aprox 500 we have to get rid of did not swivel totally free. Section diameters are: In millimeters MM. 8, 5.75, 5.2, 4.4, 3.6, 2.8 and tip rod is 2.0 mm. Six sections total. This listing is for 5 pcs. Accepting offers for large lot orders only. 50, 100 and 500 for example (pcs not sets). Non refundable closeout surplus items.
Section 1 is 4.5" long, it is the largest diameter section and has the clip on it. All the other sections retracted, callapse to 2.75" from round tip cylinder to center of screw pivot point. Or 8.95" fully extended.
