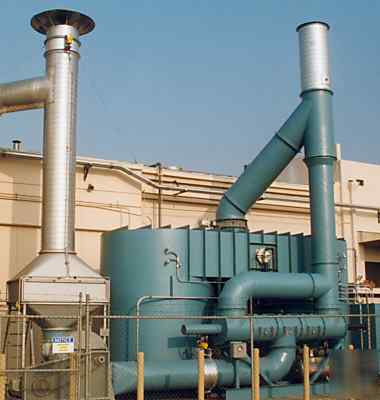

Tellkamp regenerative thermal oxidizer system rto
The manufacturer has various sizes of new and refurbished RTO units available.
The system is capable of 95% + VOC destruction.
Footprint: 31' - 6" long x 15' - 0" wide x 13' - 0" high
Weight : 62,000 pounds (including the ceramic heat exchange media)
RTO Thermal Efficiency: 92.5% design
Horsepower: 75 Horsepower Forced Draft Fan
Connected Electrical Requirements: 150 amps @ 460/3/60
Running Electrical Requirements: 80 amps @ 460/3/60
Natural Gas: 1.22 MMBtu @ 5 psig maximum during VOC destruction mode of operation
Natural Gas: 3.0 MMBtu @ 5 psig connected load
Compressed Air Requirements: 5 cfm @ 100 psi
The Purchaser is responsible for equipment installation. Optional equipment installation may be purchased from Tellkamp Systems, Inc.
Santa Fe Springs, California, USA
Optional: Air Compressor/Air Dryer $5,350.00
