> pilot ignition controls robertshaw SP845 nl 3 c
pilot ignition controls robertshaw SP845 nl 3 c

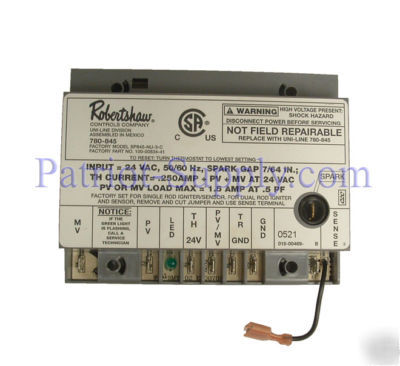

ROBERTSHAW SP845 NL 3 C 24VAC INTERMITTENT PILOT IGNITION CONTROLS (100-00834-31)
Input Voltage: 24 VAC to 50/60 Hz
Transformer: 24 VAC / 20 VA
Safety lockout timing: 90 seconds
Spark rate: 4 to 15 sparks per second
Pilot valve, Main valve: 1 amp at .5 PF
Combined load: 1.5 at .4 PF
Flame sense current: .7 mA DC @ 25 C / 24 VAC
Maximum total current load: 1.5 amp
Flame failure reignition time: 2 seconds maximum
Ambient temperature rating: 40 to 175 ( 40 to 80 C)
Relative humidity: 95% noncondensing at 104 F
Factory Model # SP845 (SP 845) 100-00834-41
NOTE: Complete factory model number is SP845NL-3-C.
NOTE: The green diagnostic LED will be on continuously for normal operation. The LED will be off for internal lockout and will flash continuously for problems external to the control (ie. not sensing flame).
