Dah lih large-capacity vertical machining center

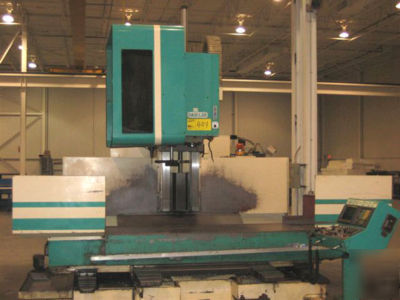

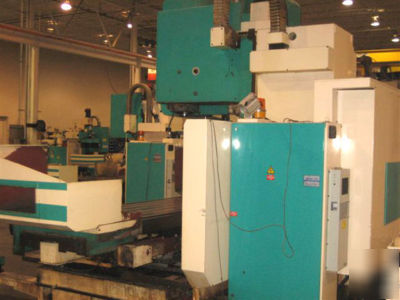

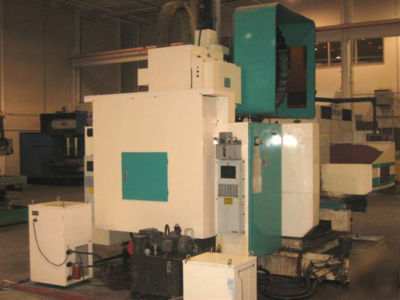

Dah Lih Large-Capacity Vertical Machining Center
X-Axis Travel ......................... 82.67"
Y-Axis Travel ......................... 33.46"
Z-Axis Travel ......................... 29.92"
Table Size ............................ 90.55"x31.49"
Table Work Weight Capacity ............ 6600 Lbs.
Spindle Speeds ........................ 35-3500 RPM
Spindle Taper ......................... CAT-50
Spindle Motor ......................... 25 HP
Cutting Feed .......................... 157.48 IPM
Rapid Feed ............................ 393.7 IPM
Tool Capacity ......................... 32 ATC
Max. Tool Size ........................ 4.3" x 13.8"
Max. Tool Weight ...................... 33 Lbs.
Dimensions (LxWxH) .................... 143"x148"x148"
Approximate Machine Weight ............ 35,200 Lbs.

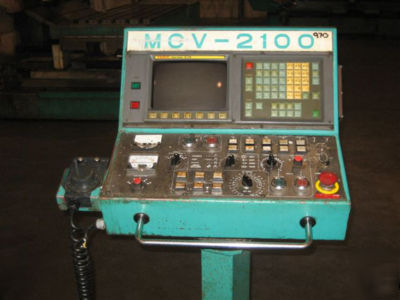

Fanuc 0M CNC Control w/ RS-232 Port
32-Position Automatic Tool Changer
