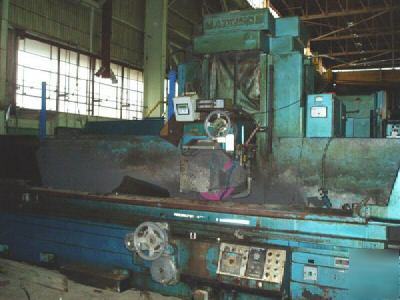

16"x 30" x 192" mattison hyd-fd surface grinder #24261
16" x 30" x 192" MATTISON HYDRAULIC-FEED
Travatrol Incremental Electronic Cross Feeds
Table Working Surface, W X L.............. 16" X 192"
Grinding Width Capacity, Maximum.......... 16"
Grinding Length Capacity, Maximum......... 192"
Height Under Grinding Wheel............... 30"
Grinding Wheel Width, Standard............ 6"
Spindle Wheel Bore Diameter............... 12"
Table Longitudinal Feeds, Range........... 0 TO 100 FPM
Table Cross In-Feeds, Range............... 0 TO 6 IPR
Grinding Wheel Spindle Motor.............. 50 HP
Overall Dimensions, L X D................. 34'9" X 9'6"
Overall Height............................ 10'11"
Weight, Approximately..................... 65000 LBS
NOTE: We Have Available At Extra Cost A
10" x 10" x 120" Walker Electro-Magnetic Double
Face Swivelling Chuck Which Would Make This Machine
Even More Vesatile In The Knife Industry. Our Stock
PRICE: F.O.B. OUR WAREHOUSE.............. $39,500.00
